Wear-Resistant Not Easy To Break Vertical Mill Mechanical Rocker Arm For All Kinds Of Vertical Mills

Description

The rocker arm is one of the core components of the vertical mill; applicable equipment: vertical mill, slag vertical mill, cement vertical mill, steel slag vertical mill, nickel slag vertical mill, raw material vertical mill, coal vertical mill.

Application Industry

Cement, Building Materials, Chemical Industry, Coal, Electric Power, Metallurgy, Non-Metallic Minerals, Etc.

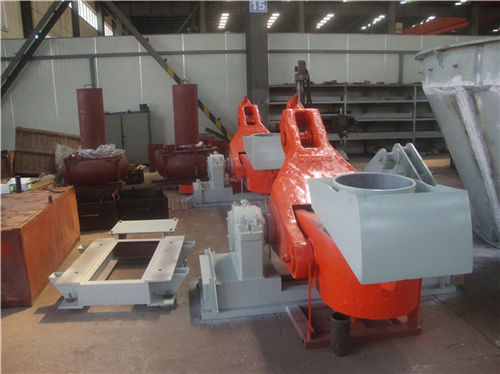

The rocker arm is one of the core components of the vertical mill. Each set of rocker arms includes an upper rocker arm, a lower rocker arm, a central shaft, a bearing seat and a bearing, etc., which are installed in the bearing seat on the support of the vertical mill.
The upper rocker arm is used to install the grinding roller, and the lower rocker arm is connected to the hydraulic system.
During the operation of the vertical mill, the main task of the rocker arm is to transmit the pressure of the hydraulic cylinder to the grinding roller, so that it can be converted into the powder and ink force on the material bed. This force is transmitted to the lower rocker arm, the upper rocker arm, and then to the grinding rollers through the pin connected to the lower rocker arm.

Outstanding advantages
1. The rocker arm of the vertical mill produced by Hengcheng Cast Steel has good wear resistance and is not easy to break;

2. Hengcheng Cast Steel adopts arc air gouging and shot blasting in the finishing of steel castings, so that the appearance quality can be guaranteed;

3. Hengcheng cast steel has strong strength, short casting cycle, and the production cycle of steel casting blanks is between 25-45 days, which is determined according to the casting process and product technical requirements;

4. Hengcheng Cast Steel promises: Before the rocker arm leaves the factory, it will carry out flaw detection and inspection on the force-bearing surface by means of process testing to ensure that the quality of each rocker arm sent from Great Wall Cast Steel is reliable, and the inferior and defective products will be eliminated. factory.

Customer Case

Our customers are all over the world, and the production of its steel casting products meets the domestic and international requirements of the production process, and has reached the industry production standards, and its good post-operation has won the recognition of new and old customers.
Our company provides professional spare parts supporting production and processing and guidance installation and commissioning services for various types of HRM vertical mills and various types of powder pneumatic conveying equipment.

The roller rocker arm produced by Hengcheng Cast Steel is applied to the 22th quicklime vertical mill of a steel company in Vietnam
