PCD Powder Pneumatic Conveying System Dense Phase

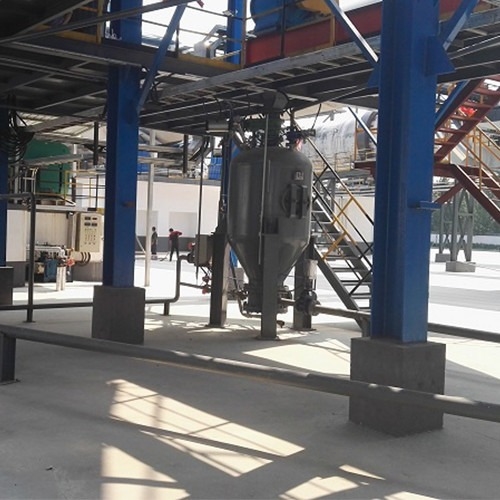

PCD Type Conventional Positive Pressure Dense Phase Pneumatic Conveying Silo Pump

Description

PCD type positive pressure dense phase pneumatic conveying warehouse pump Hengcheng company has developed pneumatic conveying equipment and process system with independent intellectual property rights after years of research and rich practical experience, and its main indicators have reached the international advanced level. The volume of the pump is determined according to the nature, particle size, conveying distance and conveying volume of the conveyed material, that is, a stand-alone design is carried out, so that the conveying energy consumption can be minimized on the premise of meeting the technological requirements. According to the specifications and performance of powder materials, conveying distance, conveying volume and geographical conditions and other parameters provided by customers, we formulate the best plan for pneumatic conveying, including the calculation of air volume, the ratio of pipelines, the dust collection treatment of the receiving bin and the after-sales plan Wait.

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Product main features
①Large conveying capacity: >300t/h;
②Long distance: >2000m;
③Low power consumption: <3.8kWh/t·km;
④Small wear: the life of the pipeline is more than 10 years;
⑤Low speed: initial speed 6～10m/s;
⑥ High mixing ratio: >30kg/kg;
⑦ Flexible process layout, no dust, high operation rate, lower investment and less maintenance cost than mechanical conveying

Application field
PCD pneumatic conveying equipment and systems have been widely used in building materials, chemical industry, mining, electric power, metallurgy and other industries. The conveying materials are: cement, raw meal, fly ash, slaked lime, dry-discharge carbide slag, slag powder, steel slag powder, coal powder, alumina powder, vitriol powder, phosphorus powder, pyrophyllite powder and organic silicon powder, etc.
