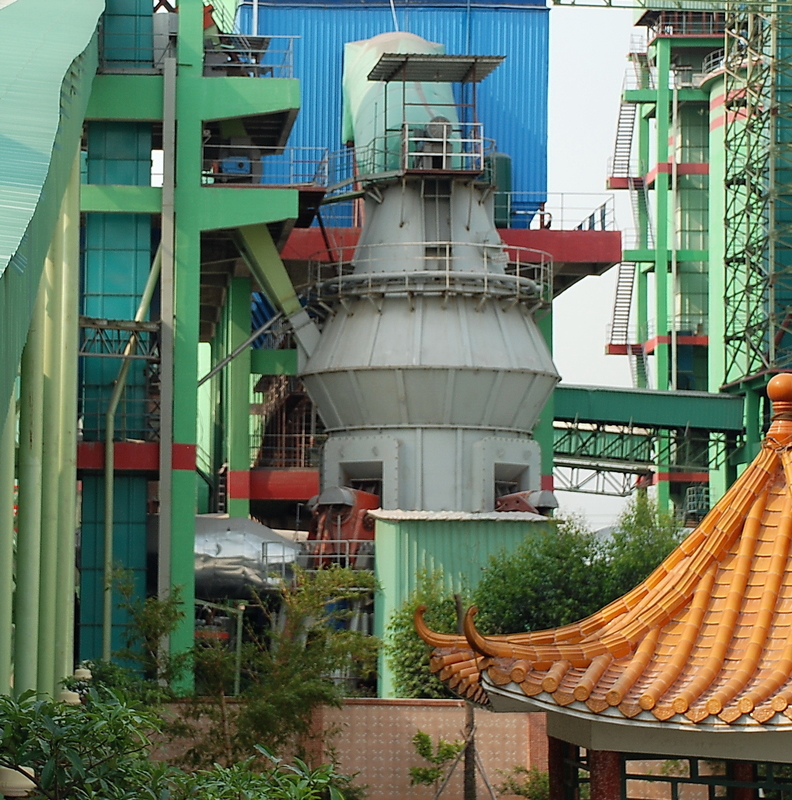

ISO Vertical Roller Slag Grinding Mill VRM For Cement Industries

Vertical Roller Mill for Slag/Steel Slag Grinding Mill Price



Detailed Product Description

VRM vertical mills are also commonly called roller mills, medium-speed mills, etc. in different industries. This model has the characteristics of integrating crushing, grinding, drying, and grading. It can be used for various types of moisture, properties and hardness. It is the ideal equipment for the grinding industry at present.

The motor drives the grinding disc to rotate through the reducer, the material falls into the center of the grinding disc from the feed inlet, and the hot air enters the mill from the air inlet. Under the action of centrifugal force, the material moves to the edge of the grinding disc, and is crushed by the grinding roller when it passes through the annular groove on the grinding disc. Re-grinding, when the material in the airflow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls on the grinding disc for re-grinding, and the qualified fine powder is milled together with the airflow and collected in the powder collecting device, which is product. Moisture-containing materials are dried during contact with hot gas to achieve the required product moisture.



Technical Data


Advantages of this Product

1. High efficiency and energy saving:
(1) High grinding efficiency and low energy consumption
(2) The single-machine production capacity is large, and the low-valley electricity can be used.
(3) New technologies for energy saving and consumption reduction

2. Easy maintenance and low operating cost:
(1) The grinding roller can be pulled out of the machine by hydraulic device, the replacement of the roller sleeve lining plate and the maintenance space of the grinding machine are large, and the maintenance operation is very convenient;
(2) The roller sleeve can be turned over for use, extending the service life of the wear-resistant material;
(3) There is no need to put cloth on the grinding disc before starting the machine, and the mill can be started with no load, eliminating the trouble of difficult starting;
(4) The wear is low, the grinding roller and the grinding disc lining are made of special materials, and the service life is long;
(5) High degree of automation: The automatic control technology adopts German Siemens series PLC, equipped with automatic control system, which can realize remote control and easy operation. The workshop can basically realize unmanned operation and save operating costs;

3. Low comprehensive investment cost:
Integrating crushing, drying, grinding and conveying, the process is simple, the system equipment is small, the structure layout is compact, and the floor area is small.

4. Stable product quality:
(1) The material stays in the pulverizer for a short time, and it is easy to detect the particle size distribution and composition of the product, and the product quality is stable;
(2) The product has uniform particle shape, narrow particle size distribution, good fluidity and strong product adaptability.




Our Service
We provide Engineering Design, After-sales Service, Engineering Consulting

*Engineering Design
We have a professional technical team composed of high-quality talents such as experts and scholars, senior engineers and postgraduates who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. Experience, has a wealth of engineering practice experience and theoretical basis. It can provide professional and systematic engineering design services for customers in various industries involving grinding system and pneumatic conveying system engineering, and provide a complete set of solutions in the field of powder engineering.

*After-sales Service
We have a long-term service in the production line, good technology, responsible after-sales service team. All members have more than 5 years of experience in the industry, and can provide customers with timely, efficient, comprehensive and scientific after-sales service. It can provide customers with the whole process of after-sales service from engineering construction, production line equipment installation, production line debugging until the production line reaches the standard and production capacity, solves various incurable diseases encountered by customers, and provides thoughtful, meticulous and perfect after-sales service.

*Project Consultancy
Based on our many years of engineering practice experience in different industries, we can provide customers with professional and multi-faceted engineering consulting services involving grinding system and pneumatic conveying system engineering. From the early stage of the project to the installation and commissioning of the production line, until the stable production reaches the standard, we can provide multi-angle technical consulting services. As long as customers have needs, we will provide customers with reasonable suggestions and better solutions at a professional level to meet customer expectations and meet customer needs.
