Product Details
Place of Origin: Hefei,CHINA
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: HVM2500 HVM2800 HVM3400 HVM3700 HVM4200 HVM4500 HVM4800 HVM5100 HVM5600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month
Name: |
Slag Vertical Mill |
Type: |
Vertical Roller Grinding Mill |
Capacity(t/h): |
23~220 |
Applicable Industries: |
Building Material Shops, Manufacturing Plant |
Machinery Test Report: |
Provided |
Mining Slag Moisture: |
＜15% |
Product Specific Surface Area: |
≥420㎡/kg |
Color: |
Customized |
Motor Power(kw): |
900-6700 |
Product Moisture: |
≤1% |
Name: |
Slag Vertical Mill |
Type: |
Vertical Roller Grinding Mill |
Capacity(t/h): |
23~220 |
Applicable Industries: |
Building Material Shops, Manufacturing Plant |
Machinery Test Report: |
Provided |
Mining Slag Moisture: |
＜15% |
Product Specific Surface Area: |
≥420㎡/kg |
Color: |
Customized |
Motor Power(kw): |
900-6700 |
Product Moisture: |
≤1% |

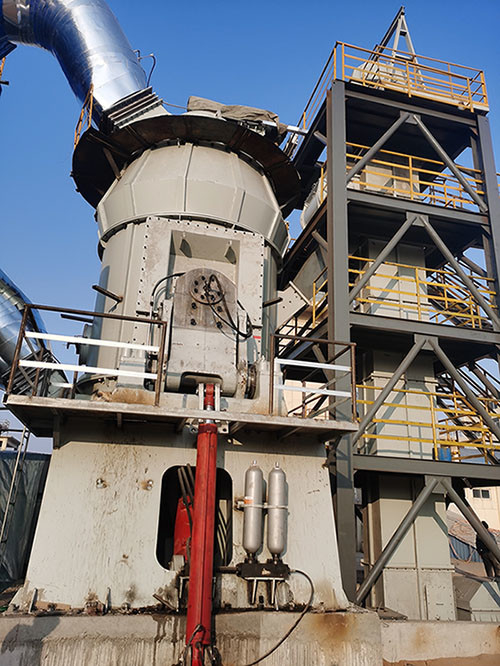

High Efficiency Vertical Roller Mill For Slag Grinding Vertical Roller Mill Price
Description
Blast furnace slag is a by-product discharged from the blast furnace ironmaking process. It has a relatively high potential activity. After grinding it to a certain fineness, it can replace the cement in the equal volume concrete and produce green synthetic cement. It can not only formulate ordinary Concrete, and it is also one of the most commonly used admixtures in high performance concrete.
【Typical Process Of Slag Vertical Mill Grinding】
The dust collection device used in the single dust collection system scheme can be a high-concentration electrostatic precipitator or a bag, and the outgoing gas directly enters the dust collector. This system reduces the number of equipment and simplifies the system configuration. It is mostly used for grinding cement clinker. Slag, steel slag, non-metallic ores and other mineral materials.
Technical Data
Model | HVM2500 | HVM2800 | HVM3400 | HVM3700 | HVM4200 | HVM4500 | HVM4800 | HVM5100 | HVM5600 |
Grinding Table Median Diameter(mm) | 2500 | 2800 | 3400 | 3700 | 4200 | 4500 | 4800 | 5100 | 5600 |
Capacity(t/h) | 23-26 | 50-60 | 70-83 | 90-110 | 110-140 | 130-150 | 150-180 | 180-200 | 200-220 |
Raw Material Moisture | ＜15% | ||||||||
Product Specific Surface Area | ≥420㎡/kg | ||||||||
Product Moistrue | ≤1% | ||||||||
Main Motor Power(kW) | 900 | 1800 | 2500 | 3350 | 3800 | 4500 | 5300 | 6150 | 6450/6700 |
Illustrate | Re:Mining slag bond index≤25kWh/t,Steel slag bond index≤30kWh/t,The output will decrease by 30%-40% when grinding steel slag micro power | ||||||||
【Main features of the product】
1. High efficiency and energy saving:
(1) High grinding efficiency and low energy consumption, compared with ball mills, the energy consumption is 40%-50% lower;
(2) The single-machine production capacity is large, and the low-valley electricity can be used;
(3) Vertical mill technology and equipment is a new energy-saving and consumption-reducing technology vigorously advocated, which is conducive to enhancing the competitiveness of enterprises in the powder industry in the region and even the whole country;
2. Easy maintenance and low operating cost:
(1) The grinding roller can be pulled out of the machine by hydraulic device, the replacement of the roller sleeve lining plate and the maintenance space of the grinding machine are large, and the maintenance operation is very convenient;
(2) The roller sleeve can be turned over for use, extending the service life of the wear-resistant material;
(3) There is no need to put cloth on the grinding disc before starting the machine, and the mill can be started with no load, eliminating the trouble of difficult starting;
(4) The wear is low, the grinding roller and the grinding disc lining are made of special materials, and the service life is long;
(5) High degree of automation: The automatic control technology adopts German Siemens series PLC, equipped with automatic control system, which can realize remote control and easy operation. The workshop can basically realize unmanned operation and save operating costs;
3. Low comprehensive investment cost:
It integrates crushing, drying, grinding and conveying. The process is simple, the system equipment is small, the structure layout is compact, and the floor area is only 50% of the ball mill. It can be arranged in the open air, and the construction cost is low, which directly reduces the investment cost of the enterprise.
4. Stable product quality:
(1) The material stays in the pulverizer for a short time, and it is easy to detect the particle size distribution and composition of the product, and the product quality is stable;
(2) The product has uniform particle shape, narrow particle size distribution, good fluidity and strong product adaptability.
5. High reliability
(1) The grinding roller limit device is used to avoid the violent vibration caused by the material cut off during the working time of the mill;
(2) The new type of grinding roller sealing device is adopted, the sealing is more reliable, and there is no need to seal the fan, which further reduces the oxygen content in the mill and has better explosion suppression performance.
6. Environmental protection:
(1) The whole system of HVM vertical mill has small vibration and low noise;
(2) The system is sealed as a whole, operates under full negative pressure, and has no dust spillage, which can basically realize a dust-free workshop.
