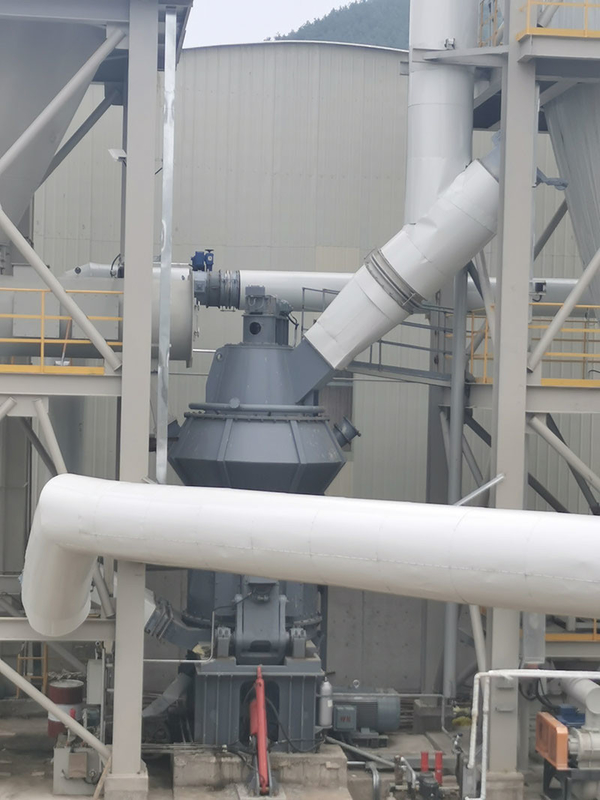

Customized Kaolin Slag Grinding Mill In Manufacturing Plant

Energy Saving Environmental Protection Multi-model Slag Vertical Grinding Equipment

Description

【Product Introduction】

HVM type vertical mill is a kind of safety, environmental protection, energy saving, high efficiency, which is designed and developed through painstaking research on the basis of widely absorbing the advanced technology of various vertical mills at home and abroad and drawing on a lot of engineering application experience. Advanced grinding equipment integrating drying, grinding, powder selection and conveying functions. The main performance and economic and technical indicators of the equipment have reached the international advanced level.

【Scope of Application】

Widely used in large-scale material grinding and ultra-fine grinding in metallurgy, electric power, cement, chemical industry, ceramics, non-metallic minerals, power plant desulfurization, water slag, slag, coal, cement clinker, glass, quartz, limestone and other industries processing.

【Working Principle】
The motor drives the grinding disc to rotate through the reducer, the material falls into the center of the grinding disc from the feed inlet, and the hot air enters the mill from the air inlet. Under the action of centrifugal force, the material moves to the edge of the grinding disc, and is crushed by the grinding roller when passing through the annular groove on the grinding disc. The crushed material is carried by the high-speed airflow at the air ring at the edge of the grinding disc, and the large particles fall directly on the grinding disc. Re-grinding, when the material in the airflow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls on the grinding disc for re-grinding, and the qualified fine powder is milled together with the airflow and collected in the powder collecting device, which is product. Moisture-containing materials are dried during contact with hot gas to achieve the required product moisture.

Technical Data

【Characteristics】

1. High grinding efficiency and low power consumption;
2. Less metal consumption per unit product;
3. Material bed grinding, low noise;
4. Negative pressure operation, less dust pollution;
5. The technological process is simple, and the functions of material grinding, drying and powder selection are completed at the same time;
6. Small footprint, compact layout, light weight of system equipment and low investment in civil construction.
