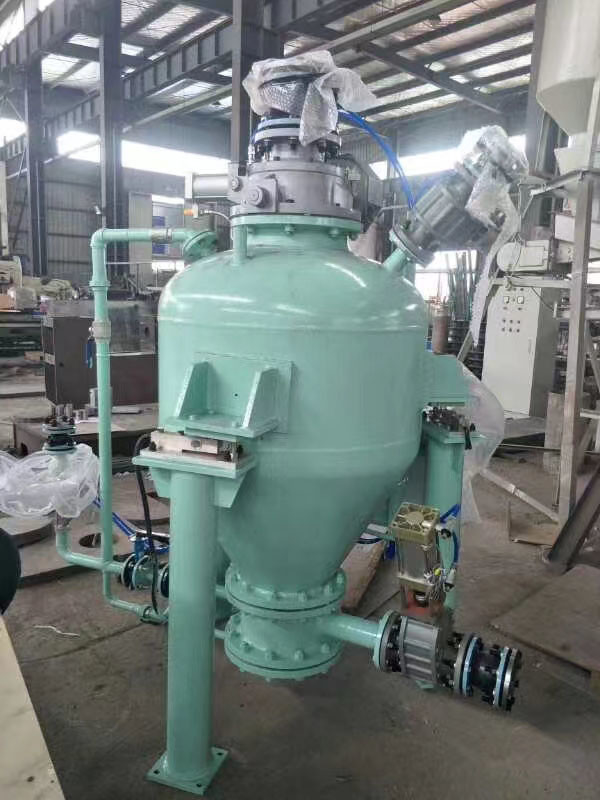

ODM Vacuum Pneumatic Conveying Pump System For Powder 2000m

Pneumatic Conveying System Conveying Pump Equipment For Cement Silo

Description

Dense-phase pneumatic conveying system is specially applied to a variety of dust long-distance sealed transport; the adaptive conveying distance equivalent is 50-500 meters, transport materials: fly ash, lime powder, cement, aluminum powder, mineral powder, saw dust, straw and so on. The equipment is simple, with small occupation area, it can make full use of space, and pipelines can be flexible layout, so that the configuration of the plant equipment will be more rational. System configuration is complete, PLC set control the entire system, fully automated operation, easy maintenance.

【Product Main Features】

① Large conveying capacity: >300t/h;

② Long distance: >2000m;

③ Low power consumption: <3.8kWh/t·km;

④ Small wear: the life of the pipeline is more than 10 years;

⑤ Low speed: initial speed 6～10m/s;

⑥ High mixing ratio: >30kg/kg;

⑦ Flexible process layout, no dust, high operation rate, lower investment and less maintenance cost than mechanical conveying

Large Capacity Pneumatic Conveying Bin Pump Parameter Table

【Functions】

1. Dense Phase Fly Ash Handling System are much better suited to powder handling than mechanical conveyors because the conveyance channels used in pneumatic conveyors are completely enclosed.

2. Dense Phase Fly Ash Handling System are used for materials handling and transportation in a wide range of industries. Unlike many mechanical conveyor designs, pneumatic conveyors can be designed to move products between floor levels and around difficult angles.

3. The whole system is composed of compressed air source,storage pump,control cabinet,conveying pipe and ash storage.

4. This system are suit for variety material transportation ,eg:fly ash,kiln dust, cement, etc dry powder material(moisture content <5%).
