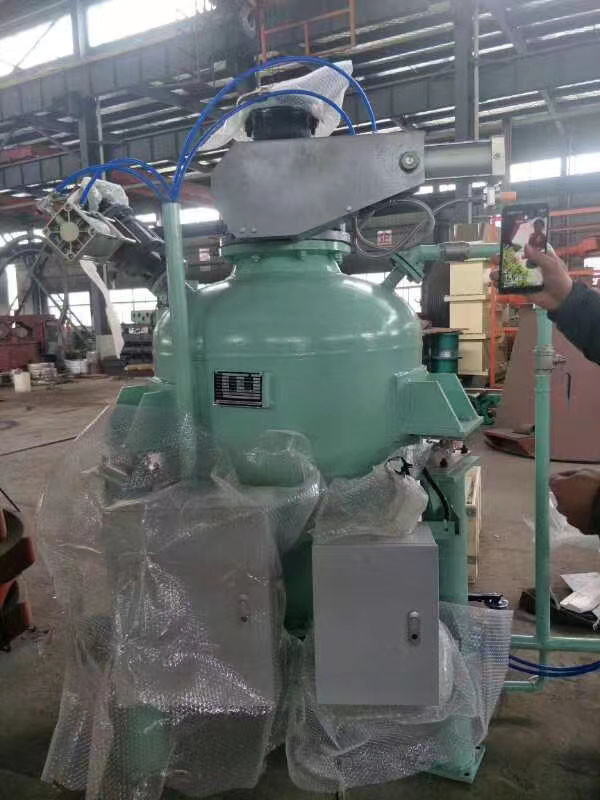

Pneumatic Vacuum Dense Phase Conveying System Pump For Coal Silo Powder

Product Details

Place of Origin: China

Brand Name: Hengcheng

Certification: ISO Patent Certificate High-Tech Product Certificate

Model Number: PCD24/L PCD26/L PCD28/L PCD30/L

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard shipping packaging

Delivery Time: 60 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5 sets\month

Get Best Price
Highlight:

Pneumatic dense phase conveying system

,

Vacuum dense phase conveying system

,

vacuum conveying system for powder

Name:
Pneumatic Transporting System Conveying Pump
Type:
Dense Phase Pneumatic Conveying Silo Pump
Applicable Industries:
Manufacturing Plant, Energy & Mining
Machinery Test Report:
Provided
Power Consumption:
<3.8kWh/t·km
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Conveying Distance:
>2000m
Pipe Life:
> 10 Years
Certification:
CE ISO
Application:
Conveying System
Product Name:
Ense Phase Pneumatic Conveying Silo Pump
Dimension(L*W*H):
According To Specific Models
Name:
Pneumatic Transporting System Conveying Pump
Type:
Dense Phase Pneumatic Conveying Silo Pump
Applicable Industries:
Manufacturing Plant, Energy & Mining
Machinery Test Report:
Provided
Power Consumption:
<3.8kWh/t·km
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Conveying Distance:
>2000m
Pipe Life:
> 10 Years
Certification:
CE ISO
Application:
Conveying System
Product Name:
Ense Phase Pneumatic Conveying Silo Pump
Dimension(L*W*H):
According To Specific Models
Pneumatic Vacuum Dense Phase Conveying System Pump For Coal Silo Powder

Long Distance Pneumatic Transporting System Conveying Pump Equipment For Coal Silo

Description


In terms of positive pressure dense phase intermittent pneumatic conveying, the company has always been committed to the theoretical research of pneumatic conveying systems and the summary of engineering practice experience, focusing on breakthroughs in the key technologies of long distance, large output, low energy consumption and low wear in the process of pneumatic conveying. The core products include PCD type positive pressure dense phase pneumatic conveying silo pump, at the same time provide systematic, standardized and refined engineering design and technical services. According to the needs of different customers, we make the best design plan according to the parameters of material properties, conveying distance, conveying volume, receiving bin capacity, dust removal capacity and geographical conditions. All have their own design features, allowing customers to truly experience the intelligent management and economic benefits brought by advanced technology products.


Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/m3) Model PCD24/H PCD26/H PCD28/H PCD30/H Conveying Distance
Specification 16~20m3 18~22m3 20~27m3 26~32m3 Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 50~80 60~90 65~110 80~130 200 20
Fly Ash 0.75 75~125 85~130 95~160 125~190 200 20
Limestone Powder/Mineral Powder 0.8 80~130 90~140 100~170 130~200 200 20
Cement/Raw Meal 1 100~150 115~175 130~215 165~260 200 20


Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/m3) Model PCD24/L PCD26/L PCD28/L PCD30/L Conveying Distance
Specification 16~20m3 18~22m3 20~27m3 26~32m3 Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 20~40 25~45 30~55 45~65 1000 25
Fly Ash 0.75 35~60 45~65 45~80 65~95 1000 25
Limestone Powder/Mineral Powder 0.8 40~65 45~70 50~85 70~100 1000 25
Cement/Raw Meal 1 50~80 55~90 65~110 90~120 1000 25




Pneumatic Vacuum Dense Phase Conveying System Pump For Coal Silo Powder 0Pneumatic Vacuum Dense Phase Conveying System Pump For Coal Silo Powder 1


【Application Field】
PCD pneumatic conveying equipment and systems have been widely used in building materials, chemical industry, mining, electric power, metallurgy and other industries. The conveying materials are: cement, raw meal, fly ash, slaked lime, dry-discharge carbide slag, slag powder, steel slag powder, coal powder, alumina powder, vitriol powder, phosphorus powder, pyrophyllite powder and organic silicon powder, etc.
【Product Main Features】
①Large conveying capacity: >300t/h;
②Long distance: >2000m;
③Low power consumption: <3.8kWh/t·km;
④Small wear: the life of the pipeline is more than 10 years;
⑤Low speed: initial speed 6~10m/s;
⑥ High mixing ratio: >30kg/kg;
⑦ Flexible process layout, no dust, high operation rate, lower investment and less maintenance cost than mechanical conveying
