Product Details
Place of Origin: China
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: PCD24/H PCD26/H PCD28/H PCD30/H
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets\month
Name: |
Fly Ash Handling Pump |
Type: |
Pneumatic Conveying System |
Material Feature: |
Fire Resistant |
Material: |
Carbon Steel |
Power Consumption: |
<3.8kWh/t·km |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Medium: |
Dry Dust |
Pipe Life: |
> 10 Years |
Certification: |
CE ISO |
Application: |
Conveying System |
Distance: |
＞2000m |
Dimension(L*W*H): |
According To Specific Models |
Name: |
Fly Ash Handling Pump |
Type: |
Pneumatic Conveying System |
Material Feature: |
Fire Resistant |
Material: |
Carbon Steel |
Power Consumption: |
<3.8kWh/t·km |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Medium: |
Dry Dust |
Pipe Life: |
> 10 Years |
Certification: |
CE ISO |
Application: |
Conveying System |
Distance: |
＞2000m |
Dimension(L*W*H): |
According To Specific Models |

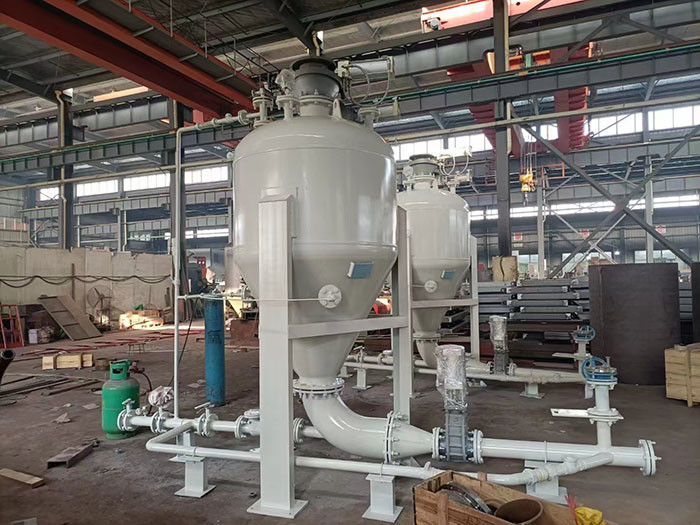

Fluorite Powder Dense Phase Pneumatic Conveyor Fly Ash Handling Pump
Description
Dense-phase pneumatic conveying system has a longest conveying horizontal distance of 2200m and a height of 30m; the maximum conveying capacity of a single unit is 300 t/h; conveying energy consumption is less than 3.8kWh/t·km, and the service life of straight conveying pipes is more than 10 years. Life expectancy is more than 3 years. According to the requirements of customers, according to the specifications and performance of powder materials, conveying distance, conveying volume and geographical conditions and other parameters provided by customers, we specifically formulate the best plan for engineering design and equipment selection, such as the calculation of air volume and the ratio of pipelines. , Receiving warehouse dust collection and after-sales plan, etc.
Large Capacity Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/H | PCD26/H | PCD28/H | PCD30/H | Conveying Distance | |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 50~80 | 60~90 | 65~110 | 80~130 | 200 | 20 |
| Fly Ash | 0.75 | 75~125 | 85~130 | 95~160 | 125~190 | 200 | 20 | |
| Limestone Powder/Mineral Powder | 0.8 | 80~130 | 90~140 | 100~170 | 130~200 | 200 | 20 | |
| Cement/Raw Meal | 1 | 100~150 | 115~175 | 130~215 | 165~260 | 200 | 20 | |
Long-distance Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/L | PCD26/L | PCD28/L | PCD30/L | Conveying Distance | |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 20~40 | 25~45 | 30~55 | 45~65 | 1000 | 25 |
| Fly Ash | 0.75 | 35~60 | 45~65 | 45~80 | 65~95 | 1000 | 25 | |
| Limestone Powder/Mineral Powder | 0.8 | 40~65 | 45~70 | 50~85 | 70~100 | 1000 | 25 | |
| Cement/Raw Meal | 1 | 50~80 | 55~90 | 65~110 | 90~120 | 1000 | 25 |
|
【Characteristic】
---Using compressed air as primary energy sources
---Solving the stratification of powder and granules
---The filters made of Ti will never be jammed and be abraded
---Eliminate the static electricity
---Made of nontoxic and corrosion resistant materials
---Leakage free capsule, to prevent cross contamination
---Intelligent control and high automation
---Materials are not adhering to the inner surface of the conveyor
---Modular structure, easy to clean and dismantle
---Small and light ,easy to install
---Low noise and free from vibration
---Energy saving and low running cost.
【Functions】
1. Dense Phase Fly Ash Handling System are used for materials handling and transportation in a wide range of industries. Unlike many mechanical conveyor designs, pneumatic conveyors can be designed to move products between floor levels and around difficult angles.
2. Dense Phase Fly Ash Handling System are much better suited to powder handling than mechanical conveyors because the conveyance channels used in pneumatic conveyors are completely enclosed.
3.This system are suit for variety material transportation ,eg:fly ash,kiln dust, cement, etc dry powder material(moisture content <5%).
4. The whole system is composed of compressed air source,storage pump,control cabinet,conveying pipe and ash storage.
