Product Details
Place of Origin: China
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: PCD24/H PCD26/H PCD28/H PCD30/H
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets\month
Name: |
Dense Phase Pneumatic Conveying System Conveying Pump |
Type: |
Pneumatic Conveying System |
Applicable Industries: |
Manufacturing Plant, Energy & Mining |
Material: |
Carbon Steel |
Power Consumption: |
<3.8kWh/t·km |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Dimension(L*W*H): |
According To Specific Models |
Pipe Life: |
> 10 Years |
Certification: |
CE ISO |
Application: |
Transport Dry Dust /power In Pipes |
Distance: |
＞2000m |
Name: |
Dense Phase Pneumatic Conveying System Conveying Pump |
Type: |
Pneumatic Conveying System |
Applicable Industries: |
Manufacturing Plant, Energy & Mining |
Material: |
Carbon Steel |
Power Consumption: |
<3.8kWh/t·km |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Dimension(L*W*H): |
According To Specific Models |
Pipe Life: |
> 10 Years |
Certification: |
CE ISO |
Application: |
Transport Dry Dust /power In Pipes |
Distance: |
＞2000m |

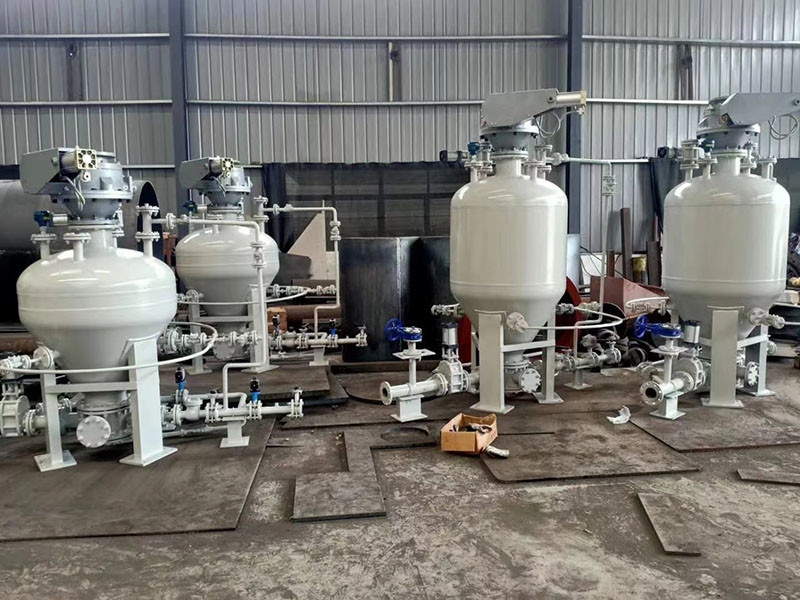

300 t / h Dense Phase Pneumatic Conveying System Conveying Pump For Cement Hopper
Description
Positive pressure dense phase pneumatic conveying refers to the transportation process with a solid content of 1030kg/m3 or a solid-gas ratio greater than 25. The working gas flow rate is low and high-pressure transportation is required.
【Scope of application】
Positive pressure dense phase pneumatic conveying, positive pressure dilute phase pneumatic conveying, positive pressure dense phase pneumatic conveying
【Material】
Powder material, granular material
Large Capacity Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/H | PCD26/H | PCD28/H | PCD30/H | Conveying Distance | |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 50~80 | 60~90 | 65~110 | 80~130 | 200 | 20 |
| Fly Ash | 0.75 | 75~125 | 85~130 | 95~160 | 125~190 | 200 | 20 | |
| Limestone Powder/Mineral Powder | 0.8 | 80~130 | 90~140 | 100~170 | 130~200 | 200 | 20 | |
| Cement/Raw Meal | 1 | 100~150 | 115~175 | 130~215 | 165~260 | 200 | 20 | |
Long-distance Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/L | PCD26/L | PCD28/L | PCD30/L | Conveying Distance | |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 20~40 | 25~45 | 30~55 | 45~65 | 1000 | 25 |
| Fly Ash | 0.75 | 35~60 | 45~65 | 45~80 | 65~95 | 1000 | 25 | |
| Limestone Powder/Mineral Powder | 0.8 | 40~65 | 45~70 | 50~85 | 70~100 | 1000 | 25 | |
| Cement/Raw Meal | 1 | 50~80 | 55~90 | 65~110 | 90~120 | 1000 | 25 |
|
Conventional Grid Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density(t/m3) | Model | PCD18/N | PCD20/N | PCD20/N | Reference Conveying Distance | |
| Specification | 5.0~6.7m3 | 7.0~10.0m3 | 10.0~15.0m3 | Level (m) | Vertical (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 12~20 | 16~32 | 25~50 | 500 | 30 |
| Fly Ash | 0.75 | 18~32 | 25~48 | 35~70 | 50 | ||
| Limestone Powder/Mineral Powder | 0.8 | 20~35 | 26~51 | 38~75 | 500 | 30 | |
| Cement/Raw Meal | 1.0 | 24~42 | 32~65 | 48~95 | 500 | 30 | |
| Silicon Powder | 1.2 | 28~50 | 40~75 | 55~115 | 500 | 30 |
|
Parameter Table Of Small Size Pneumatic Conveying Bunker Pump
| Material | Bulk Density(t/m3) | Model | PCD08/M | PCD10/M | PCD12/M | PCD14/M | Reference Conveying Distance | |
| Specification | 0.2~0.5m3 | 0.6~1.6m3 | 1.5~2.5m3 | 2.5~5.0m3 | Level (m) | Vertical (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 0.5~1.8 | 1.5~5.5 | 5.0~9.0 | 8.0~18.0 | 100 | 20 |
| Fly Ash | 0.75 | 0.9~2.8 | 2.5~8.5 | 7.0~14.0 | 12.0~27.0 | 100 | 20 | |
| Limestone Powder/Mineral Powder | 0.8 | 1.0~3.0 | 3.0~9.0 | 8.0~15.0 | 12.0~28.0 | 100 | 20 | |
| Cement/Raw Meal | 1.0 | 1.2~3.5 | 3.5~11.5 | 10.0~18.0 | 16.0~36.0 | 100 | 20 | |
| Silicon Powder | 1.2 | 1.5~4.0 | 4.5~13.5 | 12.0~20.0 | 19.0~43.0 | 100 | 20 | |
【Characteristic】
Realize clean and pollution-free transportation
It can prevent the material from being damp, stained or mixed with other sundries, and can ensure the quality of the conveyed material.
Realize a variety of process operations
In the process of conveying, the processes of measuring, batching, screening, mixing, iron removal and impurity removal can be realized at the same time to meet your production needs.
Improve workshop sanitation conditions
Adopt automatic feeding, high-precision dust removal device and sealed pipeline conveying method, so that there is no dust in feeding, no leakage in conveying, and ensure the cleanliness of the workshop.
Improve efficiency and plant configuration
Realize bulk material transportation, high efficiency, flexible arrangement of pipelines, and reasonable process configuration of factory equipment.
R & D concept is recognized
The company insists on taking technological innovation as the driving force, constantly innovating around the market and customer needs, focusing on absorption and improvement, supplemented by innovation, and achieving continuous technological breakthroughs.
Production efficiency increased by 20%
High degree of automation, time saving, labor saving, high production efficiency
20% reduction in labor costs
Each production line only needs 1-2 people on duty, reducing labor and labor costs
Environmental health
Adopt automatic feeding, high-precision dust removal device and sealed pipeline conveying method to ensure no dust in feeding and ensure the cleanliness of the workshop
No plugging, easy maintenance
Stable operation, no plugging, simple structure, easy maintenance
High precision metering
The metering and batching accuracy is as high as 2‰, which improves the quality of products and reduces the ratio of defective products.
Simple and convenient operation
High degree of automation, simple and convenient operation
