Product Details
Place of Origin: China
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: PCD24/H PCD26/H PCD28/H PCD30/H
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets\month
Name: |
Pneumatic Conveying System With Low Power Consumption |
Type: |
Pneumatic Conveying System |
Applicable Industries: |
Building Material Shops, Construction Works |
Structure: |
Conveyor System |
Delivery Volume: |
＞300t/h |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Dimension(L*W*H): |
According To Specific Models |
Work Principle: |
PCD Automatic Control |
Distance: |
＞2000m |
Power Consumption: |
＜3.8kWh/t·km |
Name: |
Pneumatic Conveying System With Low Power Consumption |
Type: |
Pneumatic Conveying System |
Applicable Industries: |
Building Material Shops, Construction Works |
Structure: |
Conveyor System |
Delivery Volume: |
＞300t/h |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Dimension(L*W*H): |
According To Specific Models |
Work Principle: |
PCD Automatic Control |
Distance: |
＞2000m |
Power Consumption: |
＜3.8kWh/t·km |

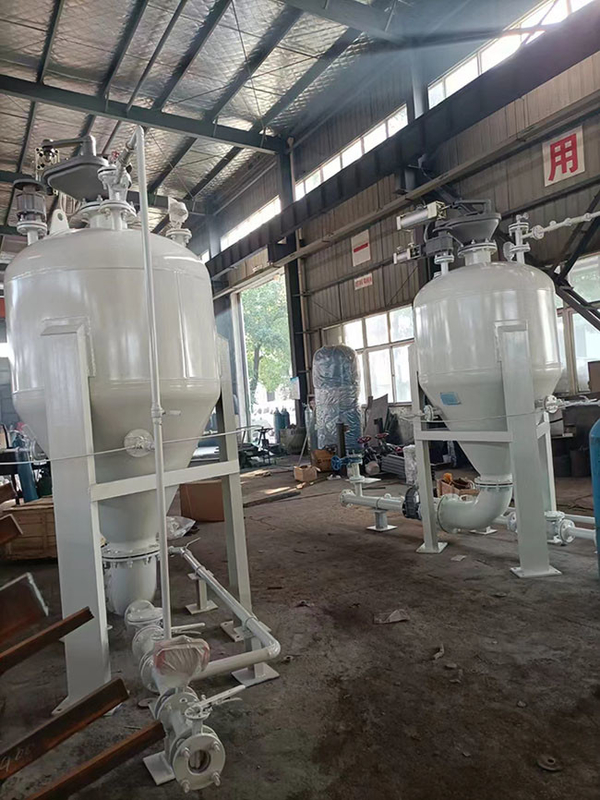

300 t / h Powder Pneumatic Conveying System With Low Power Consumption
Description
【Application field】
PCD pneumatic conveying equipment and systems have been widely used in building materials, chemical industry, mining, electric power, metallurgy and other industries.
【Conveying materials】
Cement, raw meal, fly ash, slaked lime, dry carbide slag, slag powder, steel slag powder, coal powder, alumina powder, vitriol powder, phosphorus powder, pyrophyllite powder and organic silicon powder, etc.
Large Capacity Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/H | PCD26/H | PCD28/H | PCD30/H | Conveying Distance | |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 50~80 | 60~90 | 65~110 | 80~130 | 200 | 20 |
| Fly Ash | 0.75 | 75~125 | 85~130 | 95~160 | 125~190 | 200 | 20 | |
| Limestone Powder/Mineral Powder | 0.8 | 80~130 | 90~140 | 100~170 | 130~200 | 200 | 20 | |
| Cement/Raw Meal | 1 | 100~150 | 115~175 | 130~215 | 165~260 | 200 | 20 | |
Long-distance Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/L | PCD26/L | PCD28/L | PCD30/L | Conveying Distance | |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 20~40 | 25~45 | 30~55 | 45~65 | 1000 | 25 |
| Fly Ash | 0.75 | 35~60 | 45~65 | 45~80 | 65~95 | 1000 | 25 | |
| Limestone Powder/Mineral Powder | 0.8 | 40~65 | 45~70 | 50~85 | 70~100 | 1000 | 25 | |
| Cement/Raw Meal | 1 | 50~80 | 55~90 | 65~110 | 90~120 | 1000 | 25 |
|
Conventional Grid Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density(t/m3) | Model | PCD18/N | PCD20/N | PCD20/N | Reference Conveying Distance | |
| Specification | 5.0~6.7m3 | 7.0~10.0m3 | 10.0~15.0m3 | Level (m) | Vertical (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 12~20 | 16~32 | 25~50 | 500 | 30 |
| Fly Ash | 0.75 | 18~32 | 25~48 | 35~70 | 50 | ||
| Limestone Powder/Mineral Powder | 0.8 | 20~35 | 26~51 | 38~75 | 500 | 30 | |
| Cement/Raw Meal | 1.0 | 24~42 | 32~65 | 48~95 | 500 | 30 | |
| Silicon Powder | 1.2 | 28~50 | 40~75 | 55~115 | 500 | 30 |
|
Parameter Table Of Small Size Pneumatic Conveying Bunker Pump
| Material | Bulk Density(t/m3) | Model | PCD08/M | PCD10/M | PCD12/M | PCD14/M | Reference Conveying Distance | |
| Specification | 0.2~0.5m3 | 0.6~1.6m3 | 1.5~2.5m3 | 2.5~5.0m3 | Level (m) | Vertical (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 0.5~1.8 | 1.5~5.5 | 5.0~9.0 | 8.0~18.0 | 100 | 20 |
| Fly Ash | 0.75 | 0.9~2.8 | 2.5~8.5 | 7.0~14.0 | 12.0~27.0 | 100 | 20 | |
| Limestone Powder/Mineral Powder | 0.8 | 1.0~3.0 | 3.0~9.0 | 8.0~15.0 | 12.0~28.0 | 100 | 20 | |
| Cement/Raw Meal | 1.0 | 1.2~3.5 | 3.5~11.5 | 10.0~18.0 | 16.0~36.0 | 100 | 20 | |
| Silicon Powder | 1.2 | 1.5~4.0 | 4.5~13.5 | 12.0~20.0 | 19.0~43.0 | 100 | 20 | |
【Main Feature】
High energy saving
Due to the reasonable fluidization structure, the material fluidization state is good, and the air consumption is obviously lower than that of similar products.
Gas ratio is high
The fluidization effect is good, the gas consumption is low, and the material gas ratio is naturally higher.
Material flow rate is low
Due to the low air consumption and high material-to-air ratio, the material moves in a partial flow in the pipeline, realizing dynamic and static pressure transportation, so the flow rate of the material is low during transportation, the valve and pipeline wear of the equipment is small, and the wearing parts have a long life.
Strong adjustment function
It has a variety of adjustment means such as primary and secondary air intake adjustment, which can enable the system to operate under the optimal gas consumption ratio and excellent fluidization state.
Unique blocking method
Our company adopts the reverse-pulling blockage removal method, which is simple and easy to operate, and the operation is reasonable. It only needs to lead the mixture of material and gas to the inlet of the silo or flue through the blockage removal valve and the pipeline.
Ancillary facilities are easy to solve
Due to the small air consumption and low speed, the material gas separation and filtration equipment in the silo can be smaller than that of the general silo pump, and the air pollution caused is also small.
Low energy consumption coefficient
The energy consumption coefficient of our warehouse-type pump conveying system is below 65KW.h/t.m.
High Degree Of Automation
Using a programmable (PLC) control system, the entire work process can be fully automated. The system can be set to automatic and manual operation. The main control cabinet is installed in the system control room.
