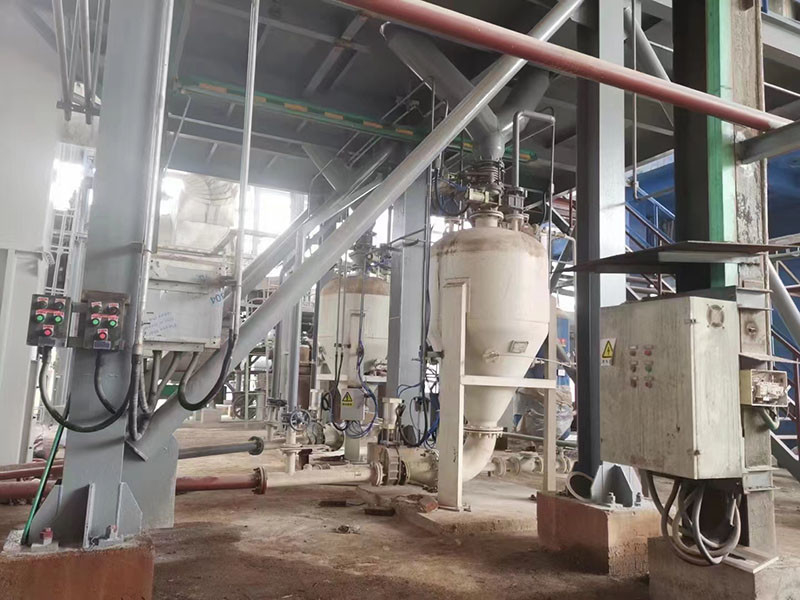

Large Volume Pneumatic Conveying Pump Equipment Dense Phase Transmission Tank

Large Delivery Volume Pneumatic Conveying System Dense Phase Transmission Tank

Description


PCD type positive pressure dense phase pneumatic conveying bin-type pump determines the volume of the pump according to the nature, particle size, conveying distance and conveying volume of the conveyed material, that is, a stand-alone design is carried out, so that the conveying can be reduced to the maximum extent under the premise of meeting the process requirements. energy consumption.

【Product Advantages and Features】
① Large conveying capacity: >300t/h;
② Long distance: >2000m;
③ Low power consumption: <3.8kWh/t·km;
④ Small wear: the life of the pipeline is more than 10 years;
⑤ Low speed: initial speed 6～10m/s;
⑥ High mixing ratio: >30kg/kg;
⑦  Flexible process layout, no dust, high operation rate, lower investment and less maintenance cost than mechanical conveying

【Application field】

PCD pneumatic conveying equipment and systems have been widely used in building materials, chemical industry, mining, electric power, metallurgy and other industries.

【Conveying materials】
Cement, raw meal, fly ash, slaked lime, dry carbide slag, slag powder, steel slag powder, coal powder, alumina powder, vitriol powder, phosphorus powder, pyrophyllite powder and organic silicon powder, etc.

Large Capacity Pneumatic Conveying Bin Pump Parameter Table


Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

At present, our longest horizontal conveying distance is 2200m and height is 30m; the maximum conveying capacity of a single unit is 300 t/h; the conveying energy consumption is less than 3.8kWh/t·km, the service life of the straight pipeline is more than 10 years, and the service life of the elbow is 3 years or more.

According to the requirements of customers, according to the specifications and performance of powder materials, conveying distance, conveying volume and geographical conditions and other parameters provided by customers, we specifically formulate the best plan for engineering design and equipment selection, such as the calculation of air volume and the ratio of pipelines. , Receiving warehouse dust collection and after-sales plan, etc. Based on a large amount of engineering practice experience, most of the positive pressure dense phase intermittent pneumatic conveying is mainly divided into the following three technological processes:

(Conveying Process Flow Chart Of Positive Pressure Dense Phase Pneumatic Conveying To One Finished Product Warehouse)

(Conveying Process Flow Chart Of Positive Pressure Dense Phase Pneumatic Conveying To 2 Finished Product Warehouses)

(Process Flow Chart Of Positive Pressure Dense Phase Conveying + Metering Shipment)
