Product Details
Place of Origin: CHINA
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: HVM800 HVM1250 HVM1300 HVM1500 HVM1700 HVM1750 HVM1900 HVM2400 HVM2400 HVM2500
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month
Name: |
VRM Slag Vertical Roller Grinding Mill |
Type: |
Vertical Roller Mill |
Capacity: |
1-45(t/h) |
Product Fineness: |
10-40um |
Motor Power (kW): |
900-6700(kw) |
Applicable Industries: |
Building Material Shops, Manufacturing Plant |
Product Moisture: |
≤1% |
Core Components: |
Engine |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Color: |
Customer Requirement |
Name: |
VRM Slag Vertical Roller Grinding Mill |
Type: |
Vertical Roller Mill |
Capacity: |
1-45(t/h) |
Product Fineness: |
10-40um |
Motor Power (kW): |
900-6700(kw) |
Applicable Industries: |
Building Material Shops, Manufacturing Plant |
Product Moisture: |
≤1% |
Core Components: |
Engine |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Color: |
Customer Requirement |

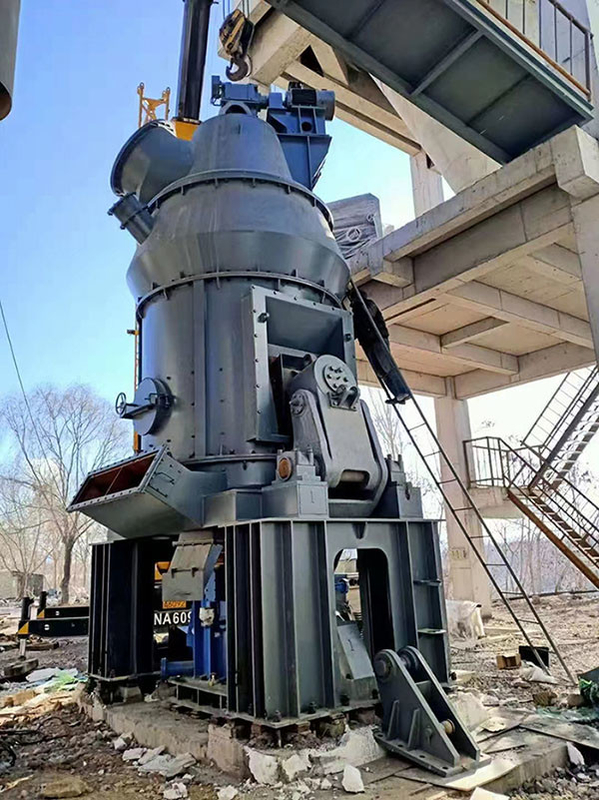

High Efficiency Cement Raw Material VRM Slag Vertical Roller Grinding Mill
Description
Cement vertical mill grinding equipment has the advantages of high efficiency, large drying capacity, easy adjustment of product fineness, low noise, low power consumption, simple process flow, low wear, and low operating costs. The main structure of vertical mill consists of separator, grinding roller device, grinding disc device, pressure device, reducer, motor, shell and other parts.
【Applicable materials】
Vertical roller mill mainly grinds raw meal, clinker, mineral powder, slag, granulated blast furnace slag, limestone, coal powder, coke powder, coal gangue, fly ash, pozzolan, gypsum, calcite, pyrophyllite , clay, sand, bauxite, silica fume, etc.
[Production capacity]: Different materials, different processing capacity, see the technical parameter table below for details
【Application industry】
Cement chemical, coal, electric power and other industries.
【The main advantage】
40-50% energy saving than ball mill
Stable and reliable operation and high production efficiency
Easy maintenance, low maintenance cost
Effective drying operation when grinding blast furnace slag with high moisture content or mixing cement
Ensure stable cement quality and easy adjustment of quality parameters
long lasting
Simple and compact mill design
Mature and reliable technology
Specifications And Technical Parameters Of Cement Vertical Mill
| Model | HVM2500 | HVM2800 | HVM3400 | HVM3700 | HVM4200 | HVM4500 | HVM4800 | HVM5100 | HVM5600 |
| Grinding Table median Diameter(mm) | 2500 | 2800 | 3400 | 3700 | 4200 | 4500 | 4800 | 5100 | 5600 |
| Capacity(t/h) | 30-35 | 70-80 | 96-110 | 130-150 | 150-170 | 150-170 | 200-230 | 240-270 | 250-290 |
| Rough Material Moisture | ＜3% | ||||||||
| Product specific surface area | ≥350㎡/kg | ||||||||
| Product Moistrue | ≤1% | ||||||||
| Main Motor Power(kW) | 900 | 1800 | 2500 | 3350 | 3800 | 4500 | 5300 | 6150 | 6450/6700 |
| Illustrate |
Re:Raw materials bond index≤18kwh/t |
||||||||
【Product advantages】
1. High grinding efficiency, vertical mill adopts grinding roller and material bed to grind and grind materials, low energy consumption, power consumption of grinding system is 40~50% lower than that of ball milling system, and as the humidity of raw materials increases, electricity is saved The effect is more pronounced.
2. Strong drying capacity. The vertical mill uses gas to convey materials. When grinding materials with high moisture content, the inlet air temperature can be controlled to make the product reach the moisture content. The vertical mill can dry materials with a moisture content of up to 12~15%. Materials, even the drying ball mill, can only dry materials with a moisture content of 3~4%.
3. The particle size of the material to be milled is large, and the secondary crushing can be omitted for large and medium-sized vertical mills.
4. The chemical composition of the product is stable and the particle gradation is uniform.
5. The process flow is simple, the building area is small, and the space is small. There is a separator in the vertical mill, and there is no need for a powder separator and a hoist. Simple and compact layout.
6. Low noise, less dust, and clean operating environment
7. The metal loss is small, and the life of the lining plate and the grinding roller is long.
