Product Details
Place of Origin: CHINA
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: ALRF630×630 ALRF1000×1000 ALRF1200×1200 ALRF1600×1200 ALRF1800×1400 ALRF2200×1600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month
Name: |

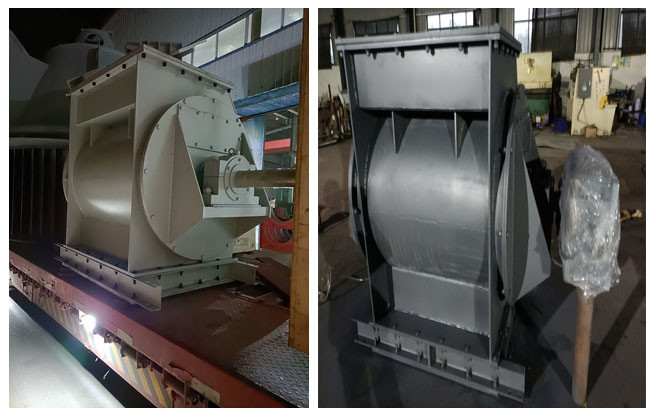

ALRF Series Rotary Air Lock Feeder For Vertical Mill |
Machinery Test Report: |
Provided |
Type: |
Rotary Airlock Feeders |
Application: |
Cement, Electric Power, Chemical Industry, Metallurgy, Lime Kiln, Mineral Processing |
Core Components: |
Housing, Rotor, Drive |
After-sales Service Provided: |
Online Support |
Motor Power: |
4kW/960r/min-15kW/1460r/min |
Feed Capacity: |
35m3/h-700m3/h |
Name: |
ALRF Series Rotary Air Lock Feeder For Vertical Mill |
Machinery Test Report: |
Provided |
Type: |
Rotary Airlock Feeders |
Application: |
Cement, Electric Power, Chemical Industry, Metallurgy, Lime Kiln, Mineral Processing |
Core Components: |
Housing, Rotor, Drive |
After-sales Service Provided: |
Online Support |
Motor Power: |
4kW/960r/min-15kW/1460r/min |
Feed Capacity: |
35m3/h-700m3/h |
Good Air Lock Effect, Even Feeding, ALRF Series Rotary Air Lock Feeder For Vertical Mill
Descripition
★ Application Field
ALRF series rotary air lock feeder is suitable for powder materials and granular materials, and is widely used in cement, electric power, chemical industry, metallurgy, lime kiln, mineral processing and other industries.
★ Main Features Of The Product
ALRF Series Rotary Lock Air Feeder
| Specification Model | Processing Capacity | Rotor Speed | Motor Power& Speed |
| ALRF630×630 | ～35m3/h | 10.6r/min | 4kW/960r/min |
| ALRF1000×1000 | ～120m3/h | 9.22r/min | 5.5kW/1440r/min |
| ALRF1200×1200 | ～160m3/h | 8.26r/min | 7.5kW/1440r/min |
| ALRF1600×1200 | ～360m3/h | 6.67r/min | 11kW/1460r/min |
| ALRF1800×1400 | ～460m3/h | 6.67r/min | 15kW/1460r/min |
| ALRF2200×1600 | ～700m3/h | 6.65r/min | 15kW/1460r/min |
【Working Principle】
The rotary air lock feeder is composed of a casing, a rotor, a driving part, etc. There is a rotor with multiple blades inside the feeder. The material in the upper silo falls by its own weight and fills the gap between the blades, and the material is discharged at the lower material port with the rotation of the rotor. Because the space between the rotor blades is uniform, the rotor speed is constant.
The rotor blade is made of special wear-resistant material, which can ensure that the blade end has good contact with the inner wall of the shell, and the blade end can be easily adjusted after wear to keep it in good contact with the inner wall of the shell, with good air lock Function. The rotor can be ventilated with hot air, has a certain drying capacity, and can adapt to high-moisture and viscous materials to prevent materials from sticking and blocking.
