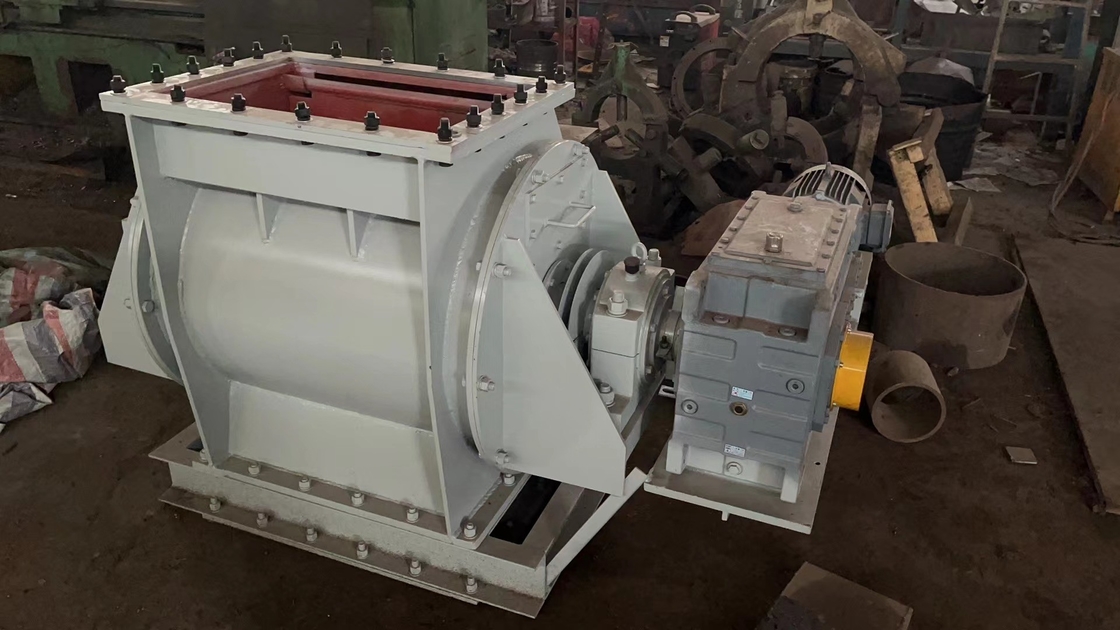

Good Wind Locking Effect Air Lock Rotary Valve For Powder Feeder

ALRF Series Good Wind Locking Effect Air Lock Rotary Valve For Powder Feeder

Descripition

【Working Principle】

The rotary air lock feeder is composed of shell, rotor, drive part, etc. There are rotors with multiple blades inside the feeder. The materials in the upper bin fall down and fill the gap between the blades by their own weight. The materials are discharged at the lower material inlet with the rotation of the rotor. Since the space between rotor blades is uniform, the rotor speed is constant.

Product introduction

This product can be used as a special air lock feeder for vertical mills, and also can be used as an air lock feeder for air swept ball mills.

It is mainly used to discharge the material continuously from the tripper and dust collector,and make sure the inner pressure not exposed to atmosphere pressure environment.

The airlock valve is made of gear motor,sealing element,impellers and rotor housing on which many rotating blades are set.It is capable of discharging powder,small particles,flaky or fiber continuously by the differential pressure of material.

ALRF series rotary air lock feeder is suitable for powdery materials and granular materials. It is widely used in cement, electric power, chemical industry, metallurgy, lime kiln, mineral processing and other industries.

ALRF Series Rotary Lock Air Feeder

【Product Features】

★ Main features of the product

ALRF series rotary air lock feeder is characterized by small wear, good air lock effect and even feeding.

• main parts of the mainframe shell are cast closely, with strong structure, high strength, not easy to deform and beautiful appearance;

• simple and stable operation, low noise, easy to use;

• high precision ensures its minimum clearance;

• the cross section of the main body shell is specially designed to effectively prevent the extrusion and crushing of granular materials;

• exhaust channels and exhaust pipe joints are provided in the casing to balance the pressure, thus improving work efficiency and preventing material accumulation;

• a variety of materials and sizes can be selected according to customer requirements: stainless steel, carbon steel, cast iron,etc.;

• multiple flange options: round or square flange design.
