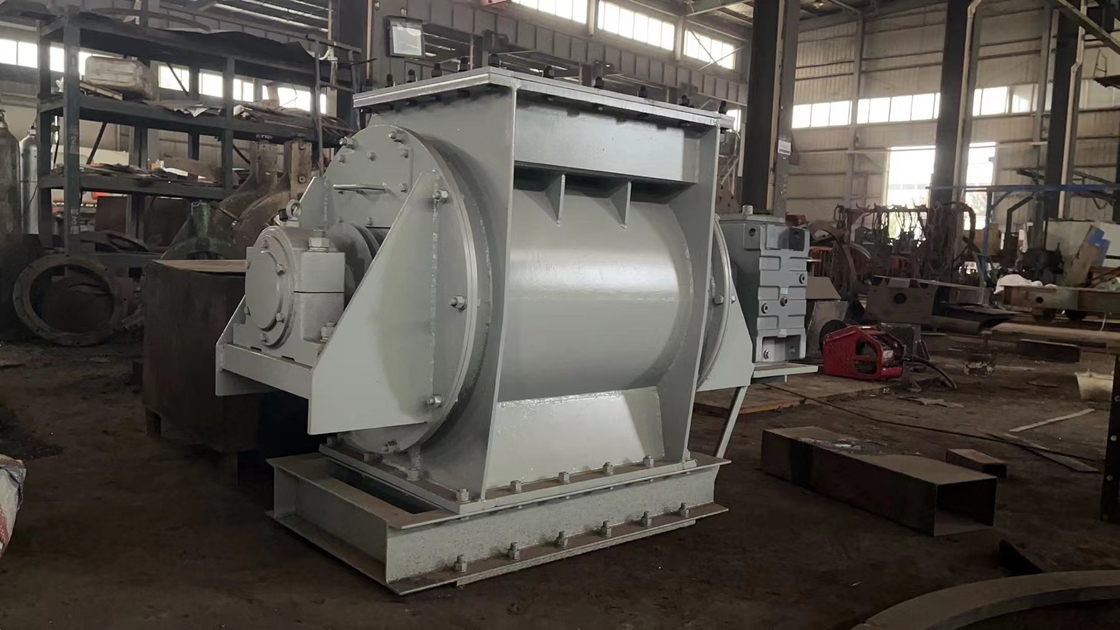

Vertical Mill Valve Rotary Airlock Feeder For Powdery / Granular Materials

Good Effect Wind Locking Vertical Mill Valve Rotary Airlock Feeder For Powdery Materials / Granular Materials

Descripition

The vertical mill is an ideal large-scale grinding equipment, which integrates crushing, drying, grinding and grading transportation. It has high production efficiency and can grind block, granular and powdery raw materials into required powdery materials.

★ Main features of the product
ALRF series rotary air lock feeder is characterized by small wear, good air lock effect and even feeding.

★ Application field
ALRF series rotary air lock feeder is suitable for powdery materials and granular materials. It is widely used in cement, electric power, chemical industry, metallurgy, lime kiln, mineral processing and other industries.

ALRF Series Rotary Lock Air Feeder

【Working Principle】

The rotary air lock feeder is composed of shell, rotor, drive part, etc. There are rotors with multiple blades inside the feeder. The materials in the upper bin fall down and fill the gap between the blades by their own weight. The materials are discharged at the lower material inlet with the rotation of the rotor. Since the space between rotor blades is uniform, the rotor speed is constant.

The rotor blades are made of special wear-resistant materials, which can ensure good contact between the blade end and the inner wall of the shell. After wear, the blade end can be easily adjusted to keep good contact with the inner wall of the shell, with good air locking function. The rotor can be ventilated with hot air and has a certain drying capacity. It can adapt to viscous materials with high moisture content and prevent materials from sticking and blocking.
