Product Details
Place of Origin: China
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: PCD18/N PCD20/N PCD22/N
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets\month
Name: |
Pneumatic Conveying System Conveying Pump Equipment |
Type: |
Pneumatic Conveying Pump |
Power: |
Pneumatic |
Core Components: |
Pressure Vessel, Motor, Pump, PLC |
Work Principle: |
PLC Automatic Control |
Conveying Material: |
Coal Powder, Fly Ash, Limestone Powder/Mineral Powder, Cement/Raw Meal, Silica Fume |
Conveying Distance: |
＞2000m |
Application: |
Building Materials, Chemicals, Mining, Electric Power, Metallurgy |
Certification: |
CE ISO |
Product Name: |
Ense Phase Pneumatic Conveying Silo Pump |
Power Consumption: |
＜3.8kWh/t·km |
Speed: |
Initial Speed 6～10m/s |
Name: |
Pneumatic Conveying System Conveying Pump Equipment |
Type: |
Pneumatic Conveying Pump |
Power: |
Pneumatic |
Core Components: |
Pressure Vessel, Motor, Pump, PLC |
Work Principle: |
PLC Automatic Control |
Conveying Material: |
Coal Powder, Fly Ash, Limestone Powder/Mineral Powder, Cement/Raw Meal, Silica Fume |
Conveying Distance: |
＞2000m |
Application: |
Building Materials, Chemicals, Mining, Electric Power, Metallurgy |
Certification: |
CE ISO |
Product Name: |
Ense Phase Pneumatic Conveying Silo Pump |
Power Consumption: |
＜3.8kWh/t·km |
Speed: |
Initial Speed 6～10m/s |
Low Power Consumption Pneumatic Conveying System Conveying Pump Equipment For Silo
Description
【Product Main Features】
PCD pneumatic conveying equipment and systems have been widely used in building materials, chemical, mining, electric power, metallurgy and other industries. Conveying materials include cement, raw meal, fly ash, slaked lime, dry discharged carbide slag, slag powder, steel slag powder, pulverized coal, aluminum oxide powder, bauxite powder, phosphate powder, pyrophyllite powder and organic silicon powder.
Characteristic
---Using compressed air as primary energy sources
---Solving the stratification of powder and granules
---The filters made of Ti will never be jammed and be abraded
---Eliminate the static electricity
---Made of nontoxic and corrosion resistant materials
---Leakage free capsule, to prevent cross contamination
---Intelligent control and high automation
---Materials are not adhering to the inner surface of the conveyor
---Modular structure, easy to clean and dismantle
---Small and light ,easy to install
---Low noise and free from vibration
---Energy saving and low running cost.
【Application Field】
PCD pneumatic conveying equipment and systems have been widely used in building materials, chemical industry, mining, electric power, metallurgy and other industries. The conveying materials are: cement, raw meal, fly ash, slaked lime, dry-discharge carbide slag, slag powder, steel slag powder, coal powder, alumina powder, vitriol powder, phosphorus powder, pyrophyllite powder and organic silicon powder, etc.
Large Capacity Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/H | PCD26/H | PCD28/H | PCD30/H | Conveying Distance | |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 50~80 | 60~90 | 65~110 | 80~130 | 200 | 20 |
| Fly Ash | 0.75 | 75~125 | 85~130 | 95~160 | 125~190 | 200 | 20 | |
| Limestone Powder/Mineral Powder | 0.8 | 80~130 | 90~140 | 100~170 | 130~200 | 200 | 20 | |
| Cement/Raw Meal | 1 | 100~150 | 115~175 | 130~215 | 165~260 | 200 | 20 | |
1. Dense Phase Fly Ash Handling System are much better suited to powder handling than mechanical conveyors because the conveyance channels used in pneumatic conveyors are completely enclosed.
2. Dense Phase Fly Ash Handling System are used for materials handling and transportation in a wide range of industries. Unlike many mechanical conveyor designs, pneumatic conveyors can be designed to move products between floor levels and around difficult angles.

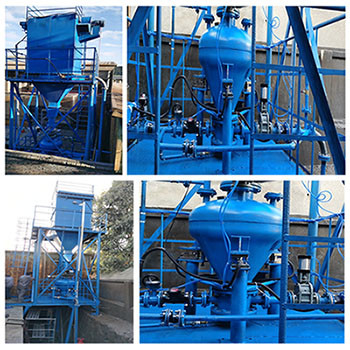

3. The whole system is composed of compressed air source,storage pump,control cabinet,conveying pipe and ash storage.
4.This system are suit for variety material transportation ,eg:fly ash,kiln dust, cement, etc dry powder material(moisture content <5%).
