Product Details
Place of Origin: China
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: PCD18/N PCD20/N PCD22/N PCD08/M PCD10/M PCD12/M PCD14/M
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets\month
Name: |
Pneumatic Conveying Pump Equipment For Silo |
Type: |
Pneumatic Conveying |
Material Feature: |
Heat Resistant |
Core Components: |
Pressure Vessel, Motor, Pump, PLC |
Work Principle: |
PLC Automatic Control |
Conveying Material: |
Coal Powder, Fly Ash, Limestone Powder/Mineral Powder, Cement/Raw Meal, Silica Fume |
Conveying Distance: |
＞2000m |
Applicable Industries: |
Manufacturing Plant, Energy & Mining |
Certification: |
CE ISO |
After Warranty Service: |
Engineers Available To Service Machinery Overseas, Free Spare Parts |
Speed: |
Initial Speed 6～10m/s |
Name: |
Pneumatic Conveying Pump Equipment For Silo |
Type: |
Pneumatic Conveying |
Material Feature: |
Heat Resistant |
Core Components: |
Pressure Vessel, Motor, Pump, PLC |
Work Principle: |
PLC Automatic Control |
Conveying Material: |
Coal Powder, Fly Ash, Limestone Powder/Mineral Powder, Cement/Raw Meal, Silica Fume |
Conveying Distance: |
＞2000m |
Applicable Industries: |
Manufacturing Plant, Energy & Mining |
Certification: |
CE ISO |
After Warranty Service: |
Engineers Available To Service Machinery Overseas, Free Spare Parts |
Speed: |
Initial Speed 6～10m/s |

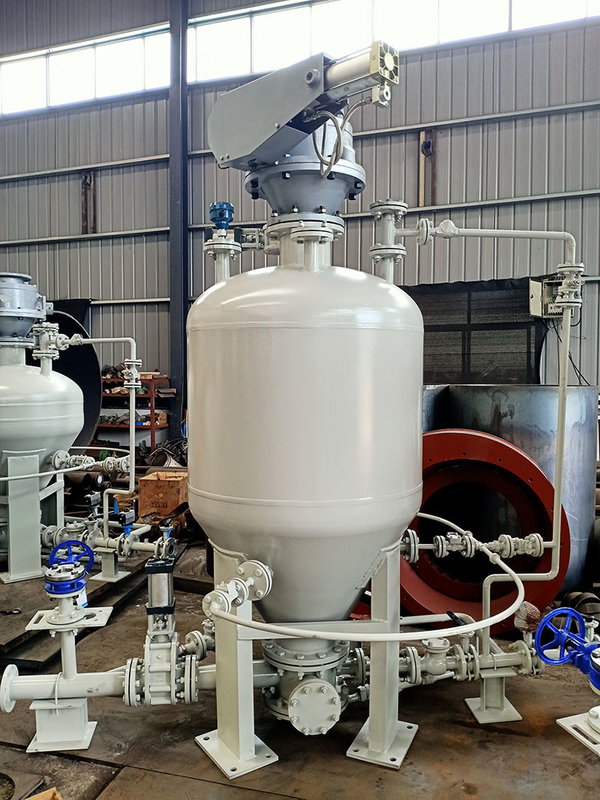

Large Conveying Capacity Pneumatic Conveying Pump Equipment For Silo
Description
The silo pneumatic conveying pump adopts the positive pressure pneumatic conveying method to convey the powder materials, which is widely used in the conveying of fly ash, cement, cement raw meal, mineral powder and other materials in power plants. The transportation pipeline can be flexibly arranged according to the terrain conditions to realize centralized, decentralized, high-altitude and long-distance transportation. The transportation process is not affected by natural conditions, and can ensure that materials are not affected by moisture and environmental protection. The equipment adopts PLC control system, which can be controlled automatically or manually. After long-term practice, it has been proved that the equipment has stable performance, reliable quality, and no dust pollution during transmission. It is an ideal pneumatic conveying equipment.
Application:
Dense Phase Pneumatic Conveying System uses compressed air or gas as the medium to transfer the bulk materials with pipe from position A to position B. It is helpful to production and environmental protection.
These materials are dry pulverized or free flowing or light powdery materials like cement, fly ash / aluminium / zinc / calcine / clinker dust / sand / bentonite / sinter dust, etc. for industries like Cement / Steel / Paper / Foundry / Chemical / Process, etc.
Large Capacity Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/H | PCD26/H | PCD28/H | PCD30/H | Conveying Distance | |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 50~80 | 60~90 | 65~110 | 80~130 | 200 | 20 |
| Fly Ash | 0.75 | 75~125 | 85~130 | 95~160 | 125~190 | 200 | 20 | |
| Limestone Powder/Mineral Powder | 0.8 | 80~130 | 90~140 | 100~170 | 130~200 | 200 | 20 | |
| Cement/Raw Meal | 1 | 100~150 | 115~175 | 130~215 | 165~260 | 200 | 20 | |
Long-distance Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/L | PCD26/L | PCD28/L | PCD30/L | Conveying Distance | |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 20~40 | 25~45 | 30~55 | 45~65 | 1000 | 25 |
| Fly Ash | 0.75 | 35~60 | 45~65 | 45~80 | 65~95 | 1000 | 25 | |
| Limestone Powder/Mineral Powder | 0.8 | 40~65 | 45~70 | 50~85 | 70~100 | 1000 | 25 | |
| Cement/Raw Meal | 1 | 50~80 | 55~90 | 65~110 | 90~120 | 1000 | 25 |
|
Conventional Grid Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density(t/m3) | Model | PCD18/N | PCD20/N | PCD20/N | Reference Conveying Distance | |
| Specification | 5.0~6.7m3 | 7.0~10.0m3 | 10.0~15.0m3 | Level (m) | Vertical (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 12~20 | 16~32 | 25~50 | 500 | 30 |
| Fly Ash | 0.75 | 18~32 | 25~48 | 35~70 | 50 | ||
| Limestone Powder/Mineral Powder | 0.8 | 20~35 | 26~51 | 38~75 | 500 | 30 | |
| Cement/Raw Meal | 1.0 | 24~42 | 32~65 | 48~95 | 500 | 30 | |
| Silicon Powder | 1.2 | 28~50 | 40~75 | 55~115 | 500 | 30 |
|
Parameter Table Of Small Size Pneumatic Conveying Bunker Pump
| Material | Bulk Density(t/m3) | Model | PCD08/M | PCD10/M | PCD12/M | PCD14/M | Reference Conveying Distance | |
| Specification | 0.2~0.5m3 | 0.6~1.6m3 | 1.5~2.5m3 | 2.5~5.0m3 | Level (m) | Vertical (m) | ||
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 0.5~1.8 | 1.5~5.5 | 5.0~9.0 | 8.0~18.0 | 100 | 20 |
| Fly Ash | 0.75 | 0.9~2.8 | 2.5~8.5 | 7.0~14.0 | 12.0~27.0 | 100 | 20 | |
| Limestone Powder/Mineral Powder | 0.8 | 1.0~3.0 | 3.0~9.0 | 8.0~15.0 | 12.0~28.0 | 100 | 20 | |
| Cement/Raw Meal | 1.0 | 1.2~3.5 | 3.5~11.5 | 10.0~18.0 | 16.0~36.0 | 100 | 20 | |
| Silicon Powder | 1.2 | 1.5~4.0 | 4.5~13.5 | 12.0~20.0 | 19.0~43.0 | 100 | 20 | |
Engineering Consulting
Based on our many years of engineering practice experience in different industries, we can provide customers with professional and multifaceted engineering consulting services related to grinding system and pneumatic conveying system engineering. From the early stage of the project to the installation and commissioning of the production line, until the stable production reaches the standard, we can provide multi-angle technical consulting services. As long as customers have needs, they will provide reasonable suggestions and better solutions to customers at a professional level to meet their expectations and meet their needs.
Engineering Design
We have a professional technical team composed of experts and scholars, senior engineers, master's degree students and other high-quality talents who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. The team members have more than 10 years of experience in large state-owned design institutes in the industry, and have rich engineering practice experience and theoretical basis. It can provide professional and systematic engineering design services for customers in various industries involved in grinding system and pneumatic conveying system engineering, and provide a complete set of solutions in the field of powder engineering.
After-sale Service
We have a responsible after-sales service team with good technology and long-term service in the production line. All members have more than 5 years of experience and can provide customers with timely, efficient, comprehensive and scientific after-sales services. It can provide customers with after-sales service in the whole process from engineering construction, production line equipment installation, production line commissioning to production line reaching the standard, solve various difficulties and miscellaneous problems encountered by customers, and provide thoughtful, detailed and perfect after-sales service.
