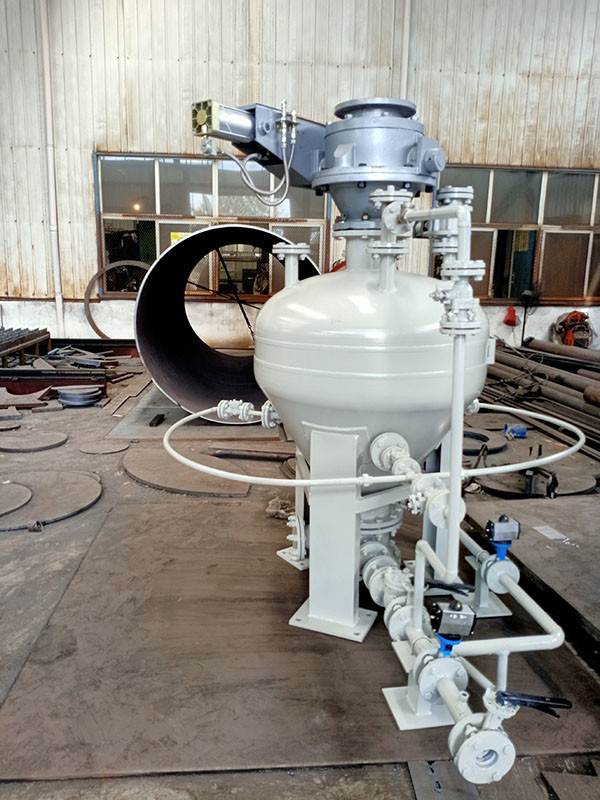

Positive Pressure Silo Pneumatic Conveying Pump Low Power Consumption

Low Power Consumption Positive Pressure Silo Pneumatic Conveying Pump/ Bin Pump

Description

4 Key Reasons to choose pneumatic conveying system:

1. Pneumatic conveying system are totally enclosed and if required can operate entirely without moving parts coming into contact

2. Pneumatic conveying system are relatively economical to install and operate with the conveyed material. Being enclosed there are hygiene & cleanlinesss benefits.

3. Pneumatic conveying system offer greatly reduced capital cost for long distance conveying.

4. A pneumatic conveying system can convey a product to any place with a pipeline. its flexible.

Main features of the product

① Large conveying capacity: ＞ 300t/h;

② Long distance: ＞ 2000m;

③ Low power consumption: ＜ 3.8kWh/t · km;

④ Small wear: pipe life>10 years;

⑤ Low speed: initial speed 6~10m/s;

⑥ High mixing ratio: ＞ 30kg/kg;

⑦ Flexible process layout, no dust, high operation rate, lower investment than mechanical transmission, and less maintenance costs

Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Principle
There are two ways to discharge the bin pump, of which the bottom discharge is the most common way. The materials in the tank can be fluidized by means of gas filling in the conical aerator, nozzle jet or other methods; A fluidization aerating plate (layer) is arranged at the bottom to discharge materials at the upper part of the tank. The distribution of the transported gas on different input planes in the tank depends on the nature of the transported material.

Application Area
PCD pneumatic conveying equipment and systems have been widely used in building materials, chemical, mining, electric power, metallurgy and other industries. Conveying materials include cement, raw meal, fly ash, slaked lime, dry discharged carbide slag, slag powder, steel slag powder, pulverized coal, aluminum oxide powder, bauxite powder, phosphate powder, pyrophyllite powder and organic silicon powder.
