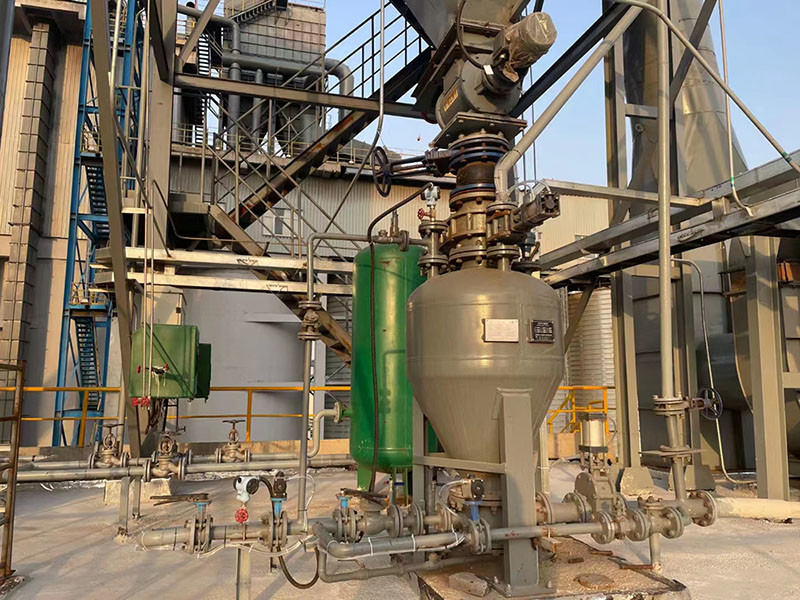

Dust Free Positive Pressure Dense Phase Pneumatic Conveying Pump Easy To Operate

Easy To Operate Dust-Free Bin Pump Positive Pressure Dense Phase Pneumatic Conveying

Description

In terms of positive pressure dense phase intermittent pneumatic conveying, the company has always been committed to theoretical research and engineering practice experience summary of pneumatic conveying systems, focusing on breaking through the key technologies of long-distance, high production, low energy consumption, and low wear in the pneumatic conveying process. The core product is the PCD type positive pressure dense phase pneumatic conveying silo pump, while providing systematic, standardized, and refined engineering design and technical services. To meet the needs of different customers, we create the best design plan based on parameters such as material properties, conveying distance, conveying capacity, receiving warehouse capacity, dust removal capacity, and geographical conditions. Each equipment is manufactured through qualified inspection, and each pneumatic conveying system has its own design features, allowing customers to truly experience the intelligent management and economic benefits brought by advanced technology products.

At present, our longest conveying horizontal distance is 2200m and the height is 30m; The maximum conveying capacity of a single unit is 300 t/h; The transportation energy consumption is less than 3.8kWh/t · km, the service life of the straight pipeline is more than 10 years, and the service life of the elbow is more than 3 years. We develop the best engineering design and equipment selection plan based on customer requirements and parameters such as powder material specifications, performance, transportation distance, transportation volume, and geographical conditions provided by the customer, such as air volume calculation, pipeline ratio, dust collection treatment in the receiving warehouse, and after-sales plan.

Large Capacity Pneumatic Conveying Bin Pump Parameter Table


Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Main features of the product
① Large conveying capacity: ＞ 300t/h;
② Long distance: ＞ 2000m;
③ Low power consumption: ＜ 3.8kWh/t · km;
④ Low wear and tear: pipeline life>10 years;
⑤ Low speed: initial speed 6-10m/s;
⑥ High mixing ratio: ＞ 30kg/kg;
⑦ Flexible process layout, dust-free, high operation rate, lower investment compared to mechanical conveying, and lower maintenance costs

Eight Advantages
1. Smooth material transportation without pipe blockage
The pneumatic conveying bin pump can basically adapt to the pneumatic conveying of any powder material, and the system installed with the pneumatic conveying bin pump will not cause pipe blockage, with high reliability.

2. High efficiency in energy conservation and environmental protection
As the fluidization structure is reasonable, the material flow fluidization is in good condition, and the gas consumption is significantly lower than that of similar products, our company has improved the fluidization structure for many times after years of production and development, which has greatly improved the production efficiency and reduced energy consumption. The pneumatic conveying system with bin pump has high material gas ratio and large material conveying capacity.

3. Can be used for long-distance pneumatic conveying
The warehouse pump pneumatic conveying system can be used for long-distance pneumatic conveying of materials. Currently, in domestic cases, the warehouse pump dense phase pneumatic conveying system is commonly used for conveying distances exceeding 2000 meters and stable operation.

4. High material to gas ratio
Good fluidization effect, low gas consumption, and higher material to gas ratio. Through laboratory testing, the equivalent distance is within 500 meters, and the material to gas ratio reaches over 30Kg (ash)/Kg (gas).

5. Low energy consumption
The conveying process of the warehouse pump only consists of three processes: feeding and pressurized conveying, omitting the step of pipeline blowing. The warehouse pump can achieve full pipe dense phase pneumatic conveying with low flow rate, and can stop conveying when there is no ash, which will not affect the next conveying process and will not block the pipeline

6. Low wear and tear
Because the flow rate of the warehouse pump is low, wear is actually proportional to the flow rate. The pneumatic conveying flow rate of the warehouse pump generally does not exceed 5m/s. Many customers who are not familiar with it generally have high conveying pressure, which increases wear. In fact, the pressure of pneumatic conveying is not related to wear. The higher the conveying speed of the material, the more severe the wear.

7. Greater than
The dense phase pneumatic conveying adaptability of the bin pump is strong, and it can transport almost any powder

8. Simple configuration
The configuration of the warehouse pump is very simple, and modular components can save a lot of costs.
