Positive Pressure Dilute Phase Pneumatic Conveying Jet Pump Reliable Performance

Reliable Performance Positive Pressure Dilute Phase Pneumatic Conveying Jet Pump

Description

In terms of positive pressure dilute phase continuous pneumatic conveying system, Hefei Hengcheng Company has always been committed to theoretical research and summary of engineering practical experience in pneumatic conveying systems, focusing on breaking through key technologies such as continuity, wear, sealing, and reliability in the process of positive pressure continuous pneumatic conveying. Its core products include PJP type positive pressure dilute phase pneumatic conveying jet pump, while providing systematic, standardized, and refined engineering design and technical services.

When the PJP jet pump pneumatic conveying system is installed at the bottom of the silo (warehouse) to transport materials using the pressure of the materials in the silo (warehouse), changes in the height of the materials in the silo (warehouse) will cause corresponding changes in the material conveying speed. Therefore, the conveying capacity of the materials depends on the height of the materials in the silo (warehouse).

When the PJP jet pump pneumatic conveying system is equipped with a locking device, the conveying capacity of the material depends on the locking capacity of the locking device.

Based on extensive engineering practice experience, most dilute phase continuous pneumatic conveying processes are as follows:

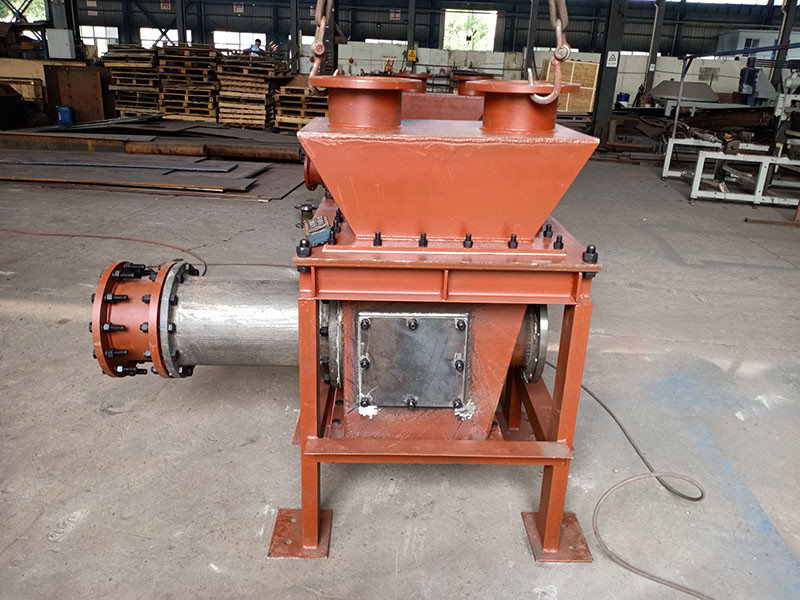

PJP Type Positive Pressure Dilute Phase Pneumatic Conveying Jet Pump

Application Area
The PJP type positive pressure dilute phase pneumatic conveying jet pump is a low-pressure, dilute phase, and continuous pneumatic conveying equipment suitable for situations where the conveying volume is not large and the conveying distance is medium. It can be widely used in industries such as building materials, chemicals, electricity, grain, metallurgy, casting, etc. The conveying materials include cement, raw materials, fly ash, hydrated lime, slag powder, steel slag powder, coal powder, aluminum oxide powder, phosphorus powder, pyrophyllite powder, and organic silicon powder.

Feature
PJP type positive pressure dilute phase pneumatic conveying jet pump is a pneumatic conveying device with automatic control, which has a compact structure, reliable performance, simple maintenance, long service life, and low investment cost. The moving parts are only materials and air. When connected to the dust removal device, its fully enclosed system design can provide a completely dust-free working environment.
