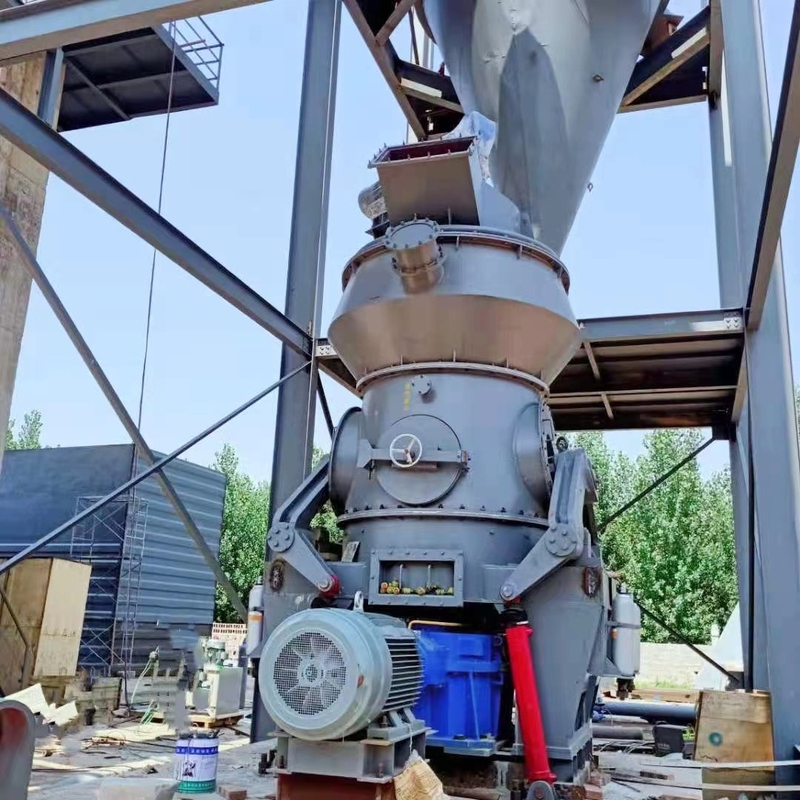

Customized Vertical Limestone Grinding Mill For Steel Slag Mineral

Customized Vertical Limestone Grinding Mill Steel Slag Mill Grinding Mineral Vertical Mill

Description

Vertical mill is a mature and high-performance grinding and drying equipment. Widely used in cement chemical, coal, power and other sectors. It has many advantages, such as drying, grinding, and powder selection. It has become a mainstream product in the grinding industry.

We have developed a highly targeted, mature, reliable, safe and efficient grinding technology and supporting equipment for the different physical and chemical characteristics of moisture, grindability, product fineness, and safety of various types of materials in various industries. The core equipment is the HVM vertical mill, which processes materials from high humidity to dry, from exceptionally difficult to grind to easy to grind, and the fineness of products ranges from coarse to fine, covering a wide range of fields, with a wide variety of materials processed.

Technical Data

Re:The data based on Mohs'hardness 3-4 material

      Limestone Bond Index≤13kwh/t

Working principle

The electric motor drives the grinding disc to rotate through a reducer, and the material falls into the center of the grinding disc from the feeding port. At the same time, hot air enters the grinding chamber from the air inlet. Under the action of centrifugal force, the material moves towards the edge of the grinding disc and is crushed by the grinding roller when passing through the circular groove on the grinding disc. The crushed material is carried up by the high-speed airflow at the edge of the grinding disc, and large particles directly fall onto the grinding disc for re grinding. When the material in the airflow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls onto the grinding disc for re grinding, and qualified fine powder is discharged with the airflow, Collect in the powder collection device, which is the product. Materials containing water are dried in the Contact process with hot gas to meet the required product moisture.

Materials that can be processed by HVM vertical mill: ferrite, slag, slag, cement, diamond, iron ore, chrome ore, manganese ore, gold mine, copper mine, aluminum ore, lead zinc ore, tantalum niobium ore, polymetallic ore, nickel ore, bauxite, silicon carbide, titanium dioxide, talc, bentonite, calcite, kaolin, graphite, mica, wollastonite, feldspar, dolomite, pyrophyllite, quartz sand, fluorite, limestone, organic silicon, limestone Shale, volcanic ash, coal, etc.

Advantage
1. Low investment cost
It integrates crushing, grinding, drying, powder selection, and transportation, with a compact layout and can be arranged outdoors, greatly reducing investment costs.

2. High grinding efficiency and good product quality
Special roller and disc structure design, and the roller adopts hydraulic automatic pressure device, resulting in a larger grinding area and high grinding efficiency. The finished product has uniform particle size distribution, good quality, good fluidity and high activity.

3. Reliable quality and stable operation
The transmission system adopts advanced planetary gear reducer, with strong bearing capacity and stable operation; The grinding roller is equipped with a hydraulic pressure system and a limit device to avoid direct contact with the grinding disc, resulting in low vibration and low noise; Equipped with automatic slag removal function, ensuring the safe operation of the equipment.

4. High drying capacity
Materials can be transported using hot air, and the inlet temperature can be controlled based on the moisture content of the material. Materials with a moisture content of up to 15% entering the mill can be dried, and the moisture content of the mill can be less than 1%.

5. High degree of automation
Adopting an automatic control system, it can achieve remote control, chain protection, reliable operation, and easy operation.

6. Easy maintenance and low operating costs
The grinding roller bearing adopts forced thin oil lubrication and is equipped with a hydraulic roller flipping device. During maintenance, the grinding roller can be flipped out of the machine by the hydraulic device, which has a large maintenance space, convenient maintenance, and low operating cost.

7. High efficiency environmental protection
The entire production line adopts a negative pressure closed circulation system and is collected by an efficient pulse dust collector, without dust leakage, meeting the latest national environmental protection requirements.

8. Integrated and comprehensive solution
A professional technical service team provides users with design, supply, and installation turnkey services, integrated and comprehensive solutions, which saves time and effort.

After-Sale Service
We have a long-term service team for the production line, with good technology and responsible after-sales service. All members have over 5 years of work experience and are able to provide timely, efficient, and comprehensive scientific after-sales service to customers. We can provide customers with after-sales service throughout the entire process of self engineering construction, production line equipment installation, production line debugging, until the production line meets the standards and reaches production capacity, solving various difficulties and miscellaneous problems encountered by customers, and providing thoughtful, meticulous, and comprehensive after-sales service.
