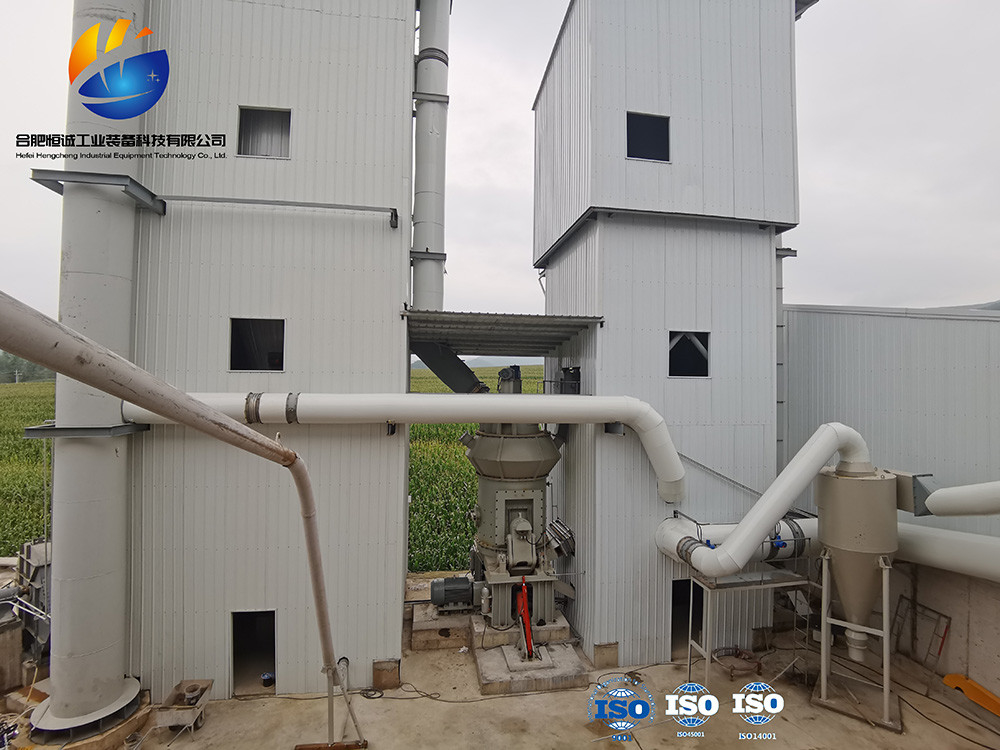

High Capacity Bentonite Vertical Grinding Mill With Low Power Consumption

High Capacity Bentonite Vertical Grinding Mill with Low Power Consumption

Description

Vertical Grinding Mill Saving Bentonite Grinding Machine Manufacturer Vertical Grinding Mill Quartz Grinding Machine
Bentonite is a non-metallic mineral, mainly composed of montmorillonite. The montmorillonite structure is a 2:1 crystal structure composed of two silicon oxide tetrahedra sandwiched with a layer of aluminum oxide octahedra. Because the layered structure formed by montmorillonite crystal cells contains some cations, such as copper, magnesium, sodium, potassium, etc. The interaction between these cations and montmorillonite crystal cells is unstable and easily exchanged by other cations, thus possessing good ion exchange performance. It has been used in more than 100 departments in 24 fields of industrial and agricultural production abroad, with over 300 types of products, so people call it "universal soil".

Technical Parameters Table

Re:The data based on Mohs'hardness 3-4 material
The product fineness can reach 10 um(1250 meshes)

1. What equipment is selected for grinding bentonite into powder?
Bentonite can be used to make feed or additives, and the fineness of the finished bentonite should be below 200 mesh, which can be met by vertical and Raymond mills. Bentonite powder production is generally divided into four types: coarse powder processing (0-3mm), fine powder processing (20-400 mesh), ultrafine powder processing (400-1250 mesh), and micro powder processing (1250-3250 mesh).
Phase 1: Crushing
Use a crusher to crush the bulk bentonite to a grindable feed fineness (15mm-50mm).
Phase 2: Grinding
The small pieces of crushed bentonite are fed into the silo by a hoist, and then evenly and quantitatively fed into the grinding chamber of the mill by a vibrating feeder for grinding.
Stage 3: Grading
The ground bentonite powder is classified by a classifier, and the unqualified powder is returned to the main mill for further grinding after being classified by the classifier.
Stage 4: Powder Harvesting
Bentonite powder with appropriate fineness enters the dust collector through a pipeline with the airflow for separation and collection. The collected finished powder is transported to the finished product warehouse through the discharge port by the conveying device, and then packaged by the powder tanker or automatic packaging machine.
2. Working principle:
The electric motor drives the grinding plate to rotate through a reducer, and the material falls into the center of the grinding plate from the feed inlet, while hot air enters the grinding chamber from the air inlet. Under the action of centrifugal force, the material moves towards the edge of the grinding disc and is crushed by the grinding roller when passing through the circular groove on the grinding disc. The crushed material is carried up by the high-speed airflow at the edge of the grinding disc, and large particles directly fall onto the grinding disc for re grinding. When the material in the airflow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls onto the grinding disc for re grinding, and qualified fine powder is discharged with the airflow, Collect in the powder collection device, which is the product. Materials containing moisture are dried during contact with hot gases to achieve the required product moisture.
KEY BENEFITS
Consistent and related production
Lowest total cost of ownership
Maximum energy efficiency
Easy operation and maintenance
Operating flexibility

3. How about the selection of vertical mill for bentonite powder?
Providing customized services based on milling needs is the main service feature of Hefei Hengcheng. Hengcheng provides comprehensive pre-sales, during sales, and after-sales services, timely develops exclusive selection and configuration plans, responds to customer needs, and is committed to providing customers with a complete set of processing solutions such as experimental research, process design, equipment manufacturing and supply, construction organization, after-sales service, accessory supply, and skill training. Therefore, The price of the bentonite vertical grinder formulated in this way is more reasonable.
