Customized Calcium Carbonate Pneumatic Conveying Equipment, Dense Phase Bin Pump Long Distance

Customized Calcium Carbonate Pneumatic Conveying Equipment, Dense Phase Bin Pump Long-Distance Low Power Consumption

Description

Product Overview
Bin pump, also known as bin pump, is a relatively reliable dense phase dynamic pneumatic conveying device for conveying powder materials under high pressure (about 700kPa or below). There are two unloading methods for bin pumps, among which bottom discharge is a common method, and the materials in the tank are fluidized through a conical inflation groove, nozzle jet, or other methods; Setting a fluidized inflation plate (layer) at the bottom can allow the material to be discharged from the upper part of the tank. The distribution of transported gas on different input planes in the tank depends on the properties of the transported material.

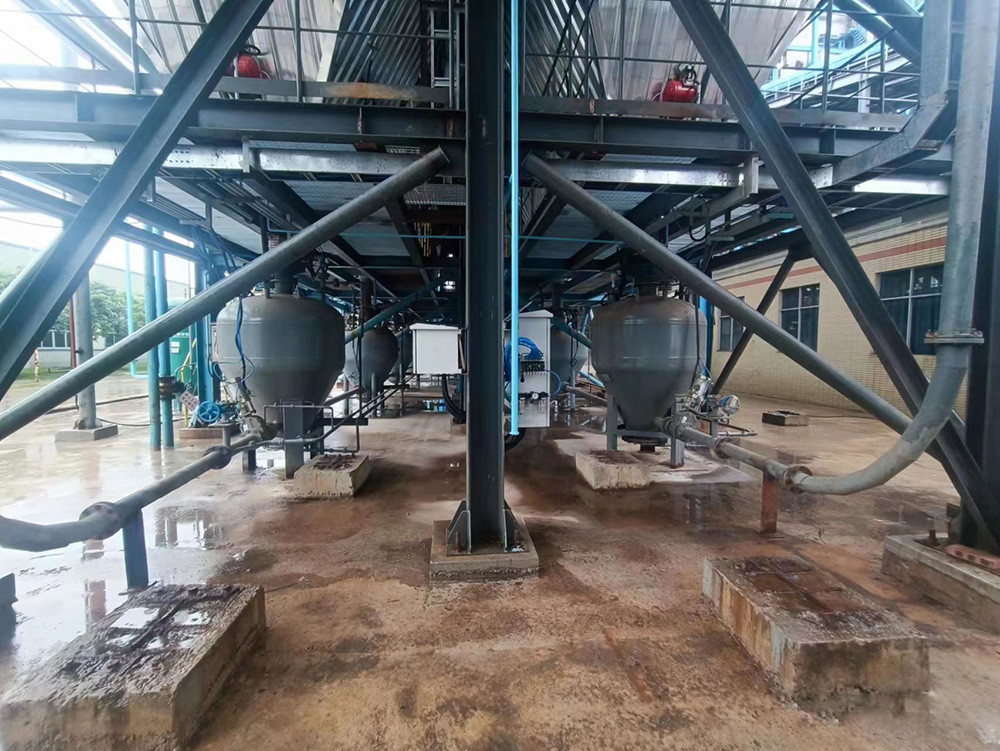

The silo pump conveying is a discontinuous conveying process. This figure shows a standard silo pump with inlet and outlet valves, material delivery pipelines, air input pipelines, and a silo. Before the feeding of the silo pump, the silo is filled with the conveyed material, and all valves are closed.

Application Area
PCD pneumatic conveying equipment and systems have been widely used in industries such as building materials, chemicals, mining, power, and metallurgy. The conveying materials include cement, raw materials, fly ash, hydrated lime, dry discharged calcium carbide slag, slag powder, steel slag powder, coal powder, aluminum oxide powder, bauxite powder, phosphorus powder, pyrophyllite powder, and organic silicon powder.

Positive pressure dense phase intermittent pneumatic conveying system
At present, our longest conveying horizontal distance is 2200m and the height is 30m; The maximum conveying capacity of a single unit is 300 t/h; The transportation energy consumption is less than 3.8kWh/t · km, the service life of the straight pipeline is more than 10 years, and the service life of the elbow is more than 3 years. We develop the best engineering design and equipment selection plan based on customer requirements and parameters such as powder material specifications, performance, transportation distance, transportation volume, and geographical conditions provided by the customer, such as air volume calculation, pipeline ratio, dust collection treatment in the receiving warehouse, and after-sales plan.

Main features of the bin pump
① Large conveying capacity: ＞ 300t/h;
② Long distance: ＞ 2000m;
③ Low power consumption: ＜ 3.8kWh/t · km;
④ Low wear and tear: pipeline life>10 years;
⑤ Low speed: initial speed 6-10m/s;
⑥ High mixing ratio: ＞ 30kg/kg;
⑦ Flexible process layout, dust-free, high operation rate, lower investment compared to mechanical conveying, and lower maintenance costs


Packaging and delivery
1. Standard packaging.
2. A well-trained and disciplined packaging team.
3. After sales service. After receiving the product, if you have any questions or questions, please feel free to contact us at any time. The problem will be resolved immediately for you.
4. Experienced and professional logistics agents.

Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump
