Description

Working principle of jet pump
Pneumatic conveying - Jet pumps utilize the energy of the airflow to transport granular or powdered materials in a closed pipeline along the conveying direction. The pneumatic conveying jet pump device has a simple structure and convenient operation; During the transportation process, it can be transported horizontally, vertically, or obliquely, and can also work simultaneously with other equipment to perform physical operations such as heating, cooling, drying, and airflow classification of materials, or certain chemical operations. Jet pumps have significant advantages in energy conservation and consumption reduction compared to other pneumatic conveying equipment.
Application Area
The PJP type positive pressure dilute phase pneumatic conveying jet pump is a low-pressure, dilute phase, and continuous pneumatic conveying equipment suitable for situations where the conveying volume is not large and the conveying distance is medium. It can be widely used in industries such as building materials, chemicals, electricity, grain, metallurgy, casting, etc. The conveying materials include cement, raw materials, fly ash, hydrated lime, slag powder, steel slag powder, coal powder, aluminum oxide powder, phosphorus powder, pyrophyllite powder, and organic silicon powder.

Advantages of pneumatic jet pumps for dilute phase transportation compared to bin pumps
(1) Powered by Roots blower, it has low investment, stable operation, low maintenance, and is not affected by condensate and oil pollution. It can operate continuously for a long time.
(2) The system layout is simple, without any intermediate links or equipment. Reduced equipment maintenance and maintenance costs.
(3) The control and adjustment are simple, using material level control and manual adjustment devices to adjust the delivery volume of the pneumatic jet pump.
(4) The outlet pressure of Roots blower is generally only 0.04-0.1MPa, with small motor power and low cost.
(5) Low pressure transportation, good equipment sealing, and reliable operation.
PJP type positive pressure dilute phase pneumatic conveying jet pump is a pneumatic conveying device with automatic control, which has a compact structure, reliable performance, simple maintenance, long service life, and low investment cost. The moving parts are only materials and air. When connected to the dust removal device, its fully enclosed system design can provide a completely dust-free working environment.

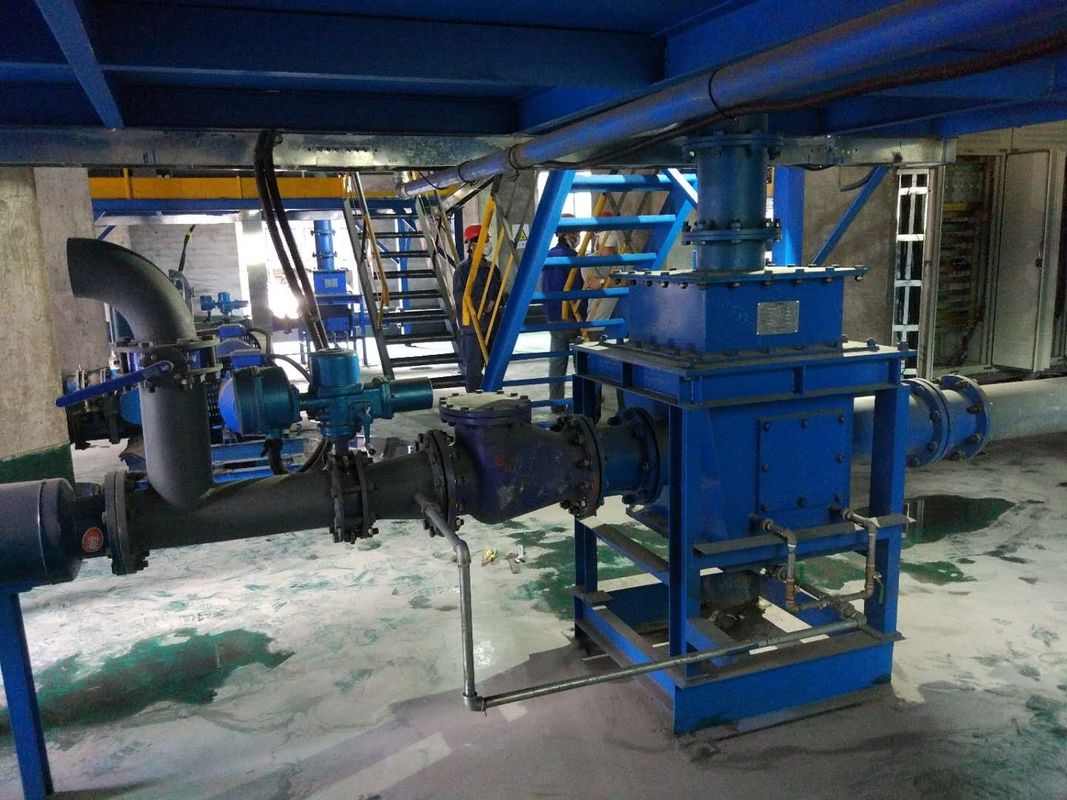

When the PJP jet pump pneumatic conveying system is installed at the bottom of the silo to transport materials using the pressure of the materials in the silo , changes in the height of the materials in the silo will cause corresponding changes in the material conveying speed. Therefore, the conveying capacity of the materials depends on the height of the materials in the silo .
When the PJP jet pump pneumatic conveying system is equipped with a locking device, the conveying capacity of the material depends on the locking capacity of the locking device.
Based on extensive engineering practice experience, most dilute phase continuous pneumatic conveying processes are as follows:

PJP Type Positive Pressure Dilute Phase Pneumatic Conveying Jet Pump
