Positive Pressure Dilute Phase Pneumatic Conveying Jet Pump Performance Reliability Jet Pump

Positive Pressure Dilute Phase Pneumatic Conveying Jet Pump Performance Reliability Jet Pump

Description

The PJP type positive pressure dilute phase pneumatic conveying jet pump is a low-pressure, dilute phase, and continuous pneumatic conveying equipment installed at the bottom of the silo. It utilizes the pressure of the materials in the silo or the lock air discharge device to use compressed air to transport powdered materials through the conveying pipeline to the required material storage.
The main characteristics of PJP pneumatic conveying jet pump :
The PJP type positive pressure dilute phase pneumatic conveying jet pump is a pneumatic conveying device with automatic control, which has a compact structure, reliable performance, simple maintenance, long service life, and low investment cost. Its moving parts are only materials and air. When connected to the dust removal device, its fully enclosed system design can provide a completely dust-free working environment.
Working principle of PJP pneumatic conveying jet pump:
The PJP type positive pressure dilute phase pneumatic conveying jet pump is a pneumatic conveying device with automatic control, which has a compact structure, reliable performance, simple maintenance, long service life, and low investment cost. Its moving parts are only materials and air. When connected to the dust removal device, its fully enclosed system design can provide a completely dust-free working environment.
When the PJP jet pump pneumatic conveying system is installed at the bottom of the silo (warehouse) and uses the pressure of the materials inside the silo (warehouse) to transport materials, the change in the height of the materials in the silo (warehouse) will cause a corresponding change in the material conveying speed. Therefore, the conveying capacity of the materials depends on the height of the materials in the silo (warehouse).

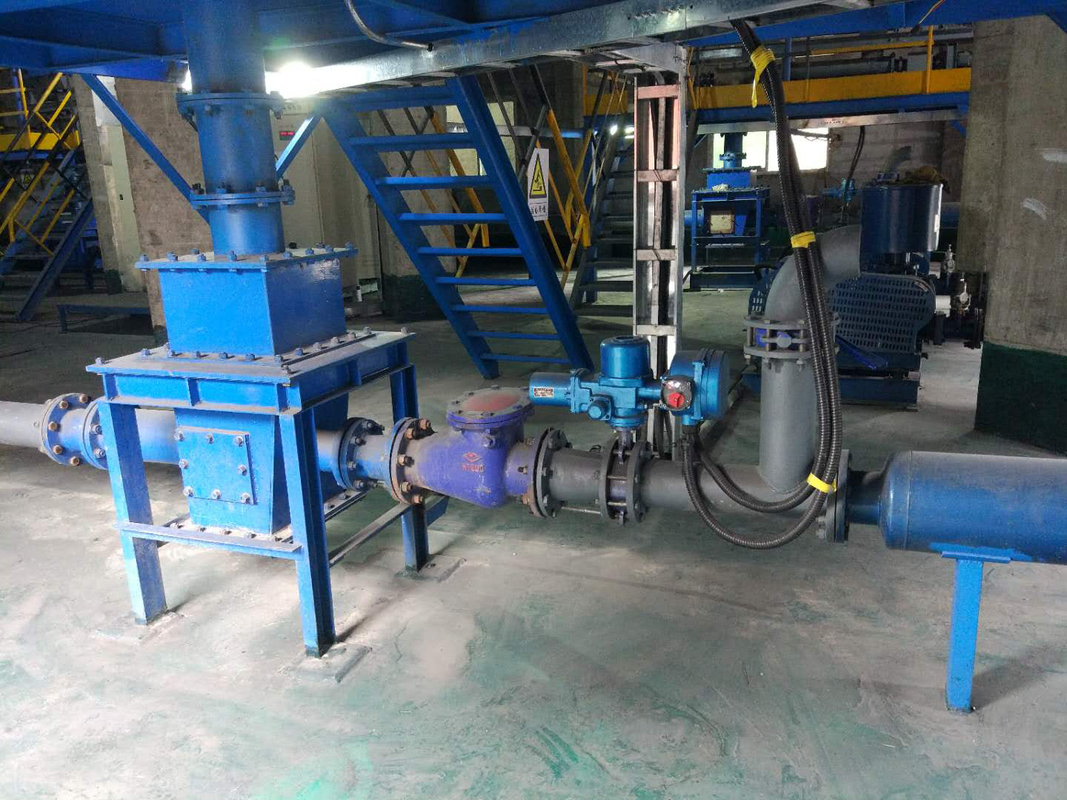

PJP Type Positive Pressure Dilute Phase Pneumatic Conveying Jet Pump

Application fields of PJP pneumatic conveying jet pump:
The PJP type positive pressure dilute phase pneumatic conveying jet pump is a low-pressure, dilute phase, and continuous pneumatic conveying equipment, suitable for situations where the conveying volume is not very large and the conveying distance is medium. It can be widely used in industries such as building materials, chemicals, electricity, grain, metallurgy, and casting. The conveying materials include cement, raw materials, fly ash, hydrated lime, slag powder, steel slag powder, coal powder, aluminum oxide powder, phosphorus powder, pyrophyllite powder, and organic silicon powder.
