Description

Working Principle

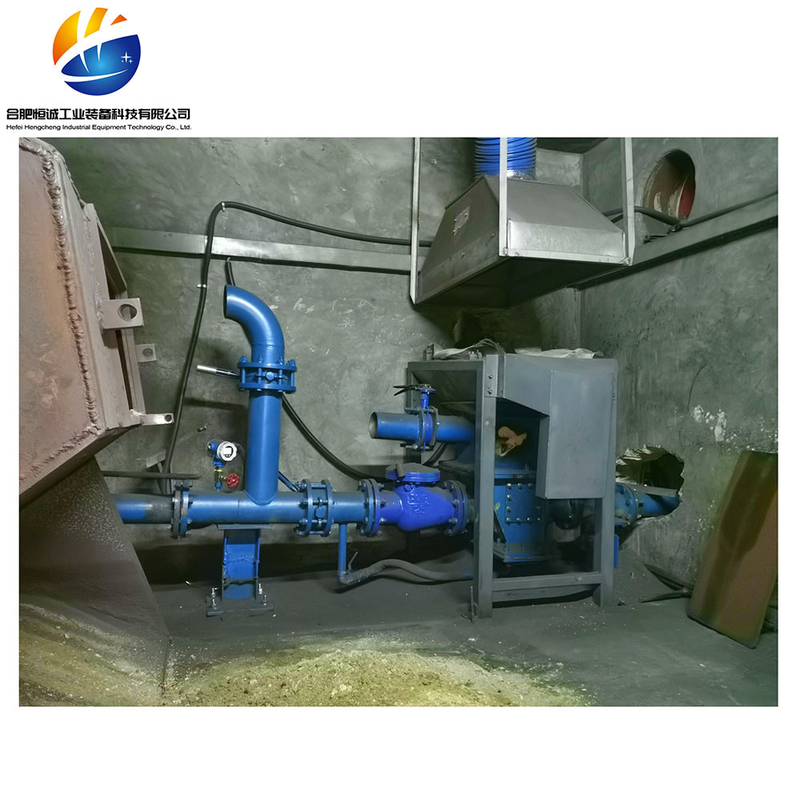

The pneumatic conveying system of the PJP jet pump is composed of a PJP jet pump, a pneumatic butterfly valve, a pump top bin, a manual spiral gate, and a compressed air supply device. The compressed air source is mainly a Roots blower. Powdered and granular materials enter the PJP jet pump through the manual spiral gate, the pump top bin, and the pneumatic butterfly valve. When the compressed air for conveying passes through the nozzle in the PJP jet pump box, the high-speed airflow generated causes a negative pressure state to form in the PJP jet pump box. The material in the pump top bin is easily mixed with the high-speed airflow. Then, when the material-air mixture passes through the expansion tube of the PJP jet device, the kinetic energy of the high-speed airflow is converted into static pressure energy, thereby conveying the powdered and granular materials to the terminal through the conveying pipeline. The manual spiral gate of the PJP jet pump is used for debugging and maintenance, and the pneumatic butterfly valve is used to automatically close when the conveying of powdered and granular materials is suspended and the system pressure is abnormal.

When the PJP positive pressure dilute phase pneumatic conveying jet pump is installed at the bottom of the silo (warehouse) to convey materials using the pressure of the materials in the silo (warehouse), the material conveying speed will change accordingly when the height of the materials in the silo (warehouse) changes. Therefore, the material conveying capacity depends on the material height in the silo (warehouse).

When the PJP positive pressure dilute phase pneumatic conveying jet pump is installed with an air lock device, the material conveying capacity depends on the air lock capacity of the air lock device.

PJP Type Positive Pressure Dilute Phase Pneumatic Conveying Jet Pump

Application fields of PJP pneumatic conveying jet pump:
The PJP type positive pressure dilute phase pneumatic conveying jet pump is a low-pressure, dilute phase, and continuous pneumatic conveying equipment, suitable for situations where the conveying volume is not very large and the conveying distance is medium. It can be widely used in industries such as building materials, chemicals, electricity, grain, metallurgy, and casting. The conveying materials include cement, raw materials, fly ash, hydrated lime, slag powder, steel slag powder, coal powder, aluminum oxide powder, phosphorus powder, pyrophyllite powder, and organic silicon powder.



The PJP type positive pressure dilute phase pneumatic conveying jet pump is a low-pressure, dilute phase, and continuous pneumatic conveying equipment installed at the bottom of the silo. It utilizes the pressure of the materials in the silo or the lock air discharge device to use compressed air to transport powdered materials through the conveying pipeline to the required material storage.

The main characteristics of PJP pneumatic conveying jet pump :
The PJP type positive pressure dilute phase pneumatic conveying jet pump is a pneumatic conveying device with automatic control, which has a compact structure, reliable performance, simple maintenance, long service life, and low investment cost. Its moving parts are only materials and air. When connected to the dust removal device, its fully enclosed system design can provide a completely dust-free working environment.
