Dense Phase Pneumatic Conveying Pump System Low Wear High Efficiency / Energy Saving 30%

Name: Dense Phase Pneumatic Conveying Pump System Low Wear High Efficiency / Energy Saving 30%
Brand: Hefei Hengcheng Industrial Equipment Technology Co., Ltd
SKU: PCD24/H PCD26/H PCD28/H PCD30/H
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Hengcheng

Certification: ISO Patent Certificate High-Tech Product Certificate

Model Number: PCD24/H PCD26/H PCD28/H PCD30/H

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard shipping packaging

Delivery Time: 60 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5 sets\month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                High Efficiency Pneumatic Conveying Pump System, Energy Saving Pneumatic Conveying Pump System, Low Wear Pneumatic Conveying Pump System


Name:	Pneumatic Conveying Bin Pump	Type:	PCD18/N,PCD20/N,PCD22/N,PCD24/L,PCD26/L,PCD28/L,PCD30/L
Conveying Materials:	Coal Powder, Fly Ash, Limestone Powder/mineral Powder, Cement/raw Materials, Silica Powder	Bulk Density（t/m³）:	0.5-1.2
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Application Scope:	Fly Ash Conveying
Scope Of Use:	Pneumatic Conveying	Customizable:	Customizable
Purpose:	Pneumatic Conveying Of Powder And Particle Materials

Name:	Pneumatic Conveying Bin Pump
Type:	PCD18/N,PCD20/N,PCD22/N,PCD24/L,PCD26/L,PCD28/L,PCD30/L
Conveying Materials:	Coal Powder, Fly Ash, Limestone Powder/mineral Powder, Cement/raw Materials, Silica Powder
Bulk Density（t/m³）:	0.5-1.2
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Application Scope:	Fly Ash Conveying
Scope Of Use:	Pneumatic Conveying
Customizable:	Customizable
Purpose:	Pneumatic Conveying Of Powder And Particle Materials

Dense Phase Pneumatic Conveying Pump System Low Wear High Efficiency / Energy Saving 30%

Pneumatic Conveying Bin Pump Long-Distance Large Capacity Dense Phase Dilute Phase Bin Pump For Fly Ash

Product Overview

Our dense phase pneumatic conveying pumps are engineered for high-pressure, low-velocity transport of abrasive/powdered materials (e.g., cement, fly ash, alumina, silica). The capacity of the pump is determined based on the properties, particle size, conveying distance, and conveying volume of the conveyed material, that is, single machine design is carried out to minimize conveying energy consumption while meeting process requirements. Based on the specifications and performance of the powder materials provided by the customer, as well as parameters such as conveying distance, conveying capacity, and geographical conditions, we develop the best solution for pneumatic conveying, including calculation of air volume, pipeline ratio, dust collection and treatment in the receiving warehouse, and after-sales planning.

✅ Key Features

① Large conveying capacity: 300t/h；

② Long distance:> 2000m；

③ Low power consumption:< 3.8kWh/t·km；

④ Low wear and tear: pipeline lifespan>10 years;

⑤ Low speed: Initial speed of 6-10m/s;

⑥ High mixing ratio:> 30kg/kg；

⑦ Flexible process layout, no dust, high operating rate, lower investment than mechanical conveying, and lower maintenance costs

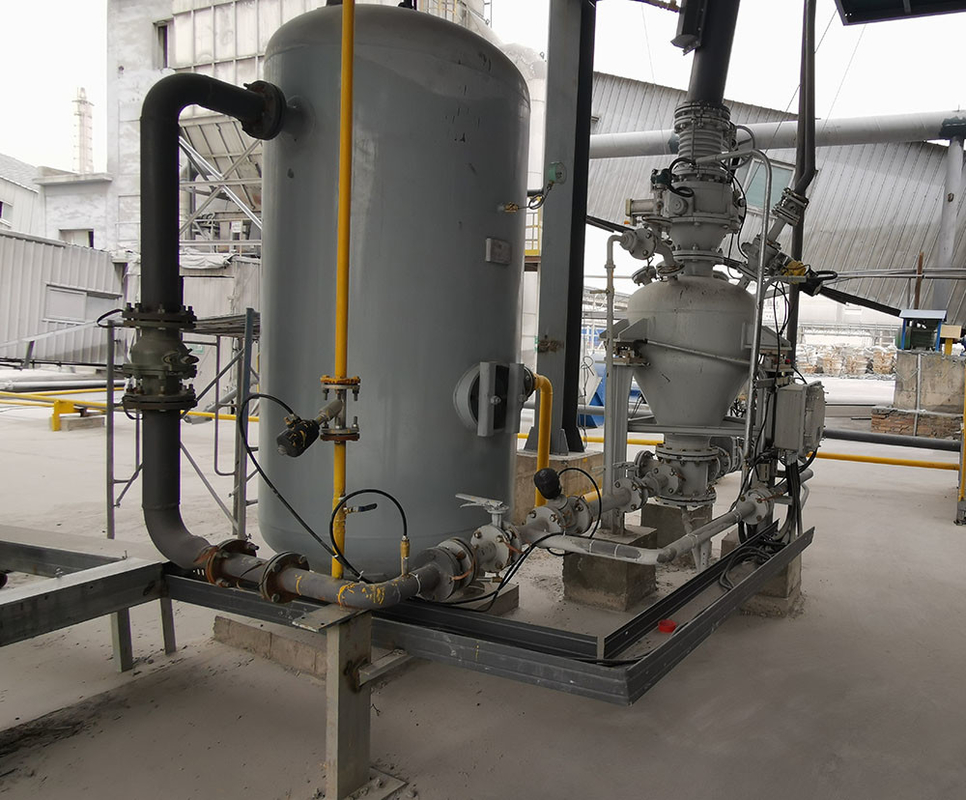

Dense Phase Pneumatic Conveying Pump System Low Wear High Efficiency / Energy Saving 30% 0
Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Conveying Material	Bulk Density (t/m³)	Model	PCD24/H	PCD26/H	PCD28/H	PCD30/H	Conveying Distance
Conveying Material	Bulk Density (t/m³)	Specification	16~20m3	18~22m3	20~27m3	26~32m3	Level (m)	Level (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	50~80	60~90	65~110	80~130	200	20
Fly Ash	0.75		75~125	85~130	95~160	125~190	200	20
Limestone Powder/Mineral Powder	0.8		80~130	90~140	100~170	130~200	200	20
Cement/Raw Meal	1		100~150	115~175	130~215	165~260	200	20

Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conveying Material	Bulk Density (t/m3)	Model	PCD24/L	PCD26/L	PCD28/L	PCD30/L	Conveying Distance
Conveying Material	Bulk Density (t/m3)	Specification	16~20m3	18~22m3	20~27m3	26~32m3	Level (m)	Level (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	20~40	25~45	30~55	45~65	1000	25
Fly Ash	0.75		35~60	45~65	45~80	65~95	1000	25
Limestone Powder/Mineral Powder	0.8		40~65	45~70	50~85	70~100	1000	25
Cement/Raw Meal	1		50~80	55~90	65~110	90~120	1000	25

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Conveying Material	Bulk Density(t/m³)	Model	PCD18/N	PCD20/N	PCD20/N	Reference Conveying Distance
Conveying Material	Bulk Density(t/m³)	Specification	5.0~6.7m³	7.0~10.0m³	10.0~15.0m³	Level (m)	Vertical (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	12~20	16~32	25~50	500	30
Fly Ash	0.75		18~32	25~48	35~70	50
Limestone Powder/Mineral Powder	0.8		20~35	26~51	38~75	500	30
Cement/Raw Meal	1.0		24~42	32~65	48~95	500	30
Silicon Powder	1.2		28~50	40~75	55~115	500	30

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Material	Bulk Density(t/m³)	Model	PCD08/M	PCD10/M	PCD12/M	PCD14/M	Reference Conveying Distance
Material	Bulk Density(t/m³)	Specification	0.2~0.5m³	0.6~1.6m³	1.5~2.5m³	2.5~5.0m³	Level (m)	Vertical (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	0.5~1.8	1.5~5.5	5.0~9.0	8.0~18.0	100	20
Fly Ash	0.75		0.9~2.8	2.5~8.5	7.0~14.0	12.0~27.0	100	20
Limestone Powder/Mineral Powder	0.8		1.0~3.0	3.0~9.0	8.0~15.0	12.0~28.0	100	20
Cement/Raw Meal	1.0		1.2~3.5	3.5~11.5	10.0~18.0	16.0~36.0	100	20
Silicon Powder	1.2		1.5~4.0	4.5~13.5	12.0~20.0	19.0~43.0	100	20

Application Area

PCD type pneumatic conveying equipment and systems have been widely used in industries such as building materials, chemical, mining, power, metallurgy, etc. The conveyed materials include cement, raw materials, fly ash, hydrated lime, dry discharge calcium carbide slag, slag powder, steel slag powder, coal powder, alumina powder, bauxite powder, phosphorus powder, pyrophyllite powder, and organic silicon powder.
