Highlight:
Name: |
Limestone Powder Vertical Mill |
Principle: |
Roll-In |
Applicable Materials: |
Limestone, Phosphate Ore, Bauxite, Iron Ore, Coal, Etc |
Core Components: |
PLC, Engine, Bearing, Gearbox, Motor, Gear |
Motor Type: |
AC Motor |
Quality: |
High Leavel |
Color: |
Customizable |
Spare Parts Supplying: |
Life Long Provide |
Way Of Working: |
High Speed Grinding Machine |

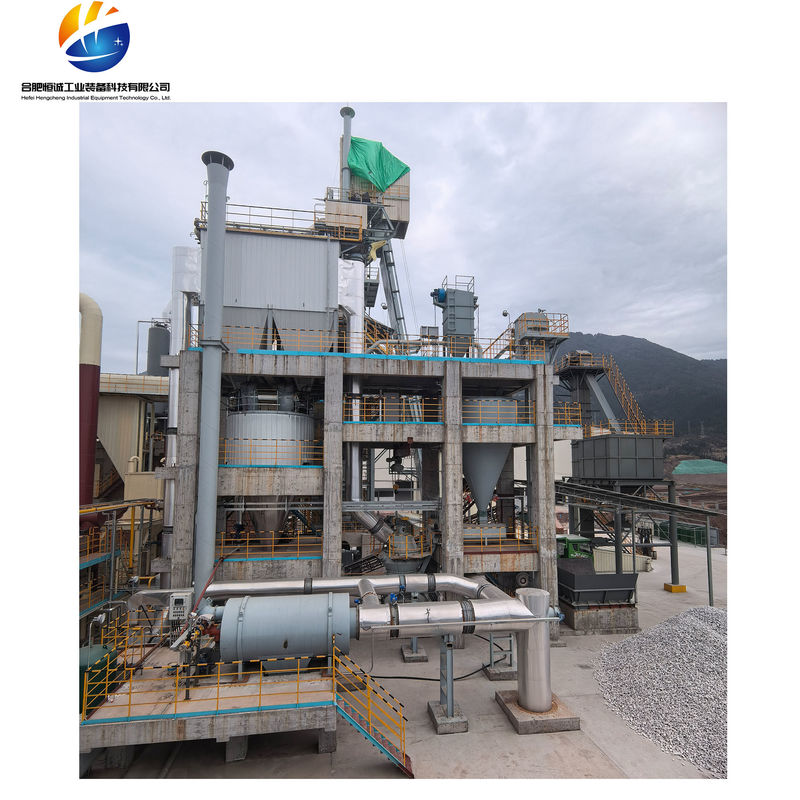

Top Calcium Carbonate Vertical Mill Supplier in Thailand/Vietnam/Indonesia
Description
Grinding principle: The motor drives the grinding disc to rotate, and the material is fed into the mill by the feeding device. Under the action of centrifugal force, it disperses in all directions and enters the raceway area between the grinding roller and the grinding disc. The grinding roller crushes and grinds the material under hydraulic or spring pressure, crushing large pieces of material and further grinding small particles into powder.
Grading principle: The airflow generated by the high-pressure fan lifts the ground material and enters the powder separator for sorting. The powder selection machine usually adopts a combination design of cage rotor and guide vanes, and the fineness of the finished product can be precisely controlled by adjusting the speed. Qualified fine powder is collected through the powder selection machine with the airflow, while unqualified coarse powder is returned to the grinding disc under the action of gravity or airflow, and continues to be ground together with the newly fed material.
Drying principle: During the grinding process, hot air can be introduced, and the hot air is evenly sprayed upwards from the air ring surrounding the grinding disc at high speed to dry the material. On the one hand, hot air can evaporate the moisture brought in by the material, and on the other hand, it helps to improve the grinding efficiency and ensure that the moisture content of the product is within the required range.
Structural Features
Grinding Table and Grinding Rolls
The grinding table and grinding rolls are the main grinding components, typically made of special wear-resistant materials such as high-chromium cast iron and tungsten carbide to enhance their wear resistance and service life. The surface of the grinding table is equipped with a special groove structure, which increases the friction between the material and the grinding table, allowing the material to be better rolled and ground.
Powder Selector
An efficient built-in powder selector accurately classifies the ground material to ensure uniform particle size distribution of the finished product. Parameters such as the rotation speed and blade angle of the powder selector can be adjusted according to production needs to meet the production of products with different fineness requirements.
Transmission Device
Generally composed of a main motor, coupling, speed reducer, etc., it is installed at the lower part of the mill. The transmission device not only drives the grinding table to rotate but also bears the weight of the grinding table, materials, grinding rolls, and the grinding pressure applied by the pressurization device. It usually adopts a combined transmission form of bevel gears and planetary gears, featuring high transmission efficiency and stable operation.
Sealing Device
Advanced sealing technologies such as labyrinth seals and air seals are used to effectively prevent dust leakage, ensure the stability of the airflow inside the mill and the cleanliness of the working environment, and reduce dust pollution to the equipment and the environment.
Technical Data
| Model |
HVM1250 |
HVM1300 |
HVM1500 |
HVM1700 |
HVM1900 |
HVM2400 |
HVM2500 |
HVM2800 |
| Grinding Table Median Diameter(mm) |
1250 |
1300 |
1500 |
1700 |
1900 |
2400 |
2500 |
2800 |
| Capacity(t/h) |
6~9 |
9~13 |
15~20 |
24~32 |
26~35 |
36~45 |
45～58 |
56~80 |
| Material Moisture |
≤5% |
| Limestone Powder Fineness |
325 mesh (44um) 90% passed |
| Main Motor Power(kw) |
110/132 |
185/200 |
250/280 |
355/400 |
450/500 |
450/500 |
710/800 |
1120/1250 |
Re:The data based on Mohs'hardness 3-4 material
Limestone Bond Index≤13kwh/t
Why choose our limestone vertical mill?
Technological Leadership: We have gathered top R&D teams in the industry, continuously tracking and absorbing international advanced technology, and continuously innovating and optimizing limestone vertical mills to ensure that the equipment remains at the forefront of the industry.
Excellent Quality: From raw material procurement to production and processing, we strictly follow international quality management system standards to control every step, selecting high-quality raw materials and advanced manufacturing processes to ensure that every equipment has excellent quality and reliable performance.
Personalized customization: We understand that different users have different production needs and working conditions, so we provide personalized equipment customization services. Based on the specific requirements of users, we tailor the most suitable limestone vertical grinding solution to ensure that the equipment can perfectly adapt to the user's production process.
Comprehensive after-sales service: With a professional and efficient after-sales service team, we provide customers with comprehensive and one-stop after-sales service support. We will respond promptly from equipment installation and debugging, operation training to later maintenance and troubleshooting, to solve users' worries and ensure long-term stable operation of the equipment.
If you are looking for an efficient, energy-saving, and environmentally friendly limestone grinding equipment, our limestone vertical mill is undoubtedly your best choice. Welcome to contact us anytime, we will serve you wholeheartedly and work together to create a better future!
