Product Details
Place of Origin: CHINA
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: HVM800 HVM1250 HVM1300 HVM1500 HVM1700 HVM1750 HVM1900 HVM2400 HVM2400 HVM2500
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month
Name: |
Calcite Ultra-fine Powder Grinding Vertical Mill Equipment |
Type: |
Vertical Grinding Mill |
Capacity(t/h): |
1-45(t/h) |
Motor Power: |
55-710(kw) |
Installation: |
Under Technical Guidance |
Color: |
Customizable |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Product Fineness: |
97% |
Name: |
Calcite Ultra-fine Powder Grinding Vertical Mill Equipment |
Type: |
Vertical Grinding Mill |
Capacity(t/h): |
1-45(t/h) |
Motor Power: |
55-710(kw) |
Installation: |
Under Technical Guidance |
Color: |
Customizable |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Product Fineness: |
97% |

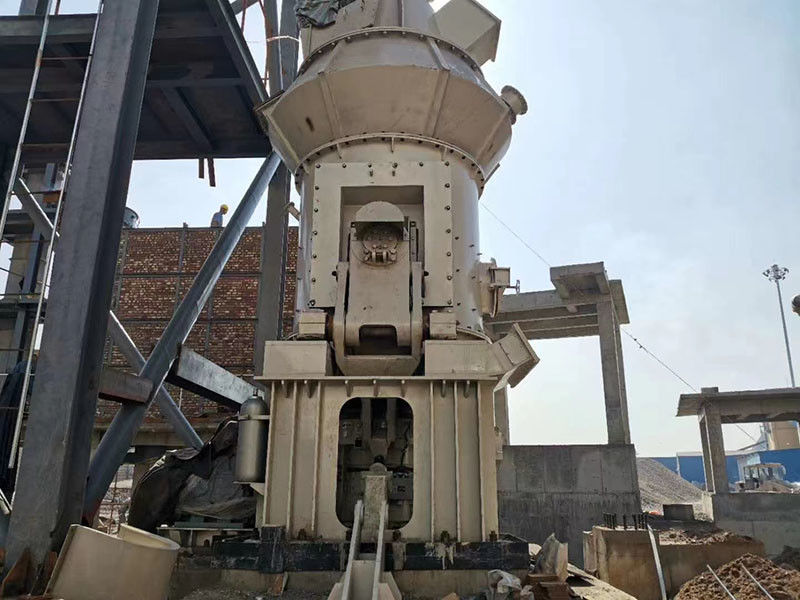

Environmental Protection Calcite Ultra-fine Powder Grinding Vertical Grinding Equipment
Description
Calcite vertical mill is a common grinding equipment, which is widely used in the ultra-fine grinding of calcite, dolomite, marble, bauxite, bentonite and other non-metallic mineral products and the grinding of pyrophyllite powder in the glass fiber industry. . The processing fineness can be freely adjusted between 325 meshes and 1250 meshes (10um-40um). It has become an important material ultrafine powder processing equipment and other raw material deep processing machines, which is of great significance to the development of modern high-tech industries.
【Material that can be processed by HVM vertical mill】
Ferrite, slag, slag, cement, diamond, iron ore, chrome ore, manganese ore, gold ore, copper ore, aluminum ore, lead-zinc ore, tantalum niobium ore, polymetallic ore, nickel ore, bauxite, silicon carbide , titanium dioxide, talc, bentonite, calcite, kaolin, graphite, mica, wollastonite, feldspar, dolomite, pyrophyllite, quartz sand, fluorite, limestone, silicone, hectorite, shale, pozzolan, coal etc.
| Specifications | HVM800 | HVM1250 | HVM1300 | HVM1500 | HVM1700 | HVM1750 | HVM1900 | HVM2400 | HVM2400 | HVM2500 |
| Grinding table median diameter | 800 | 1250 | 1300 | 1500 | 1700 | 1750 | 1900 | 2400 | 2400 | 2500 |
| Capacity(t/h) | 1-3 | 2-7 | 3-12 | 4-16 | 6-24 | 7-27 | 7-28 | 9-35 | 10-39 | 11-45 |
| Materials Grain Size(mm) | 0-15 | 0-20 | 0-25 | 0-35 | 0-35 | 0-35 | 0-40 | 0-40 | 0-40 | 0-50 |
| Materials Moisture(%) | ＜5 | |||||||||
| Product Fineness(10-40um) | 97% | |||||||||
| Product Moisture(%) | ≤1 | |||||||||
| Main Motor Power(kw) | 55 | 132 | 180 | 250 | 355 | 400 | 450 | 560 | 630 | 710 |
Re:The data based on Mohs'hardness 3-4 material
The product fineness can reach 10 um(1250 mesh)
【Advantage】
1. High efficiency and energy saving: high grinding efficiency and low energy consumption, compared with ball mills, the energy consumption is 40%-50% lower;
2. Easy maintenance and low operating cost
3. Low comprehensive investment cost
It integrates crushing, drying, grinding and conveying, with simple process flow, less system equipment, compact structure layout and small floor area, which is only 50% of that of ball mill.
4. The product quality is stable, the product particle shape is uniform, the particle size distribution is narrow, the fluidity is good, and the product adaptability is strong.
5. High reliability, avoid the violent vibration caused by the material cut off during the working time of the mill; the explosion suppression performance is more excellent.
6. Environmental protection: the whole system of HVM vertical mill has low vibration and low noise; no dust spillage
