Product Details
Place of Origin: CHINA
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: HVM800 HVM1250 HVM1300 HVM1500 HVM1700 HVM1750 HVM1900 HVM2400 HVM2400 HVM2500
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month
Name: |
1250 Mesh Vertical Roller Mill For Calcite |
Applicable Industries: |
Energy & Mining |
Capacity(t/h): |
1-45(t/h) |
Motor Power: |
55-710(kw) |
Core Components: |
Engine, Gearbox, Motor |
Application: |
Feldspar, Calcite, Limestone Or Other |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Product Fineness: |
97% |
Name: |
1250 Mesh Vertical Roller Mill For Calcite |
Applicable Industries: |
Energy & Mining |
Capacity(t/h): |
1-45(t/h) |
Motor Power: |
55-710(kw) |
Core Components: |
Engine, Gearbox, Motor |
Application: |
Feldspar, Calcite, Limestone Or Other |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Product Fineness: |
97% |

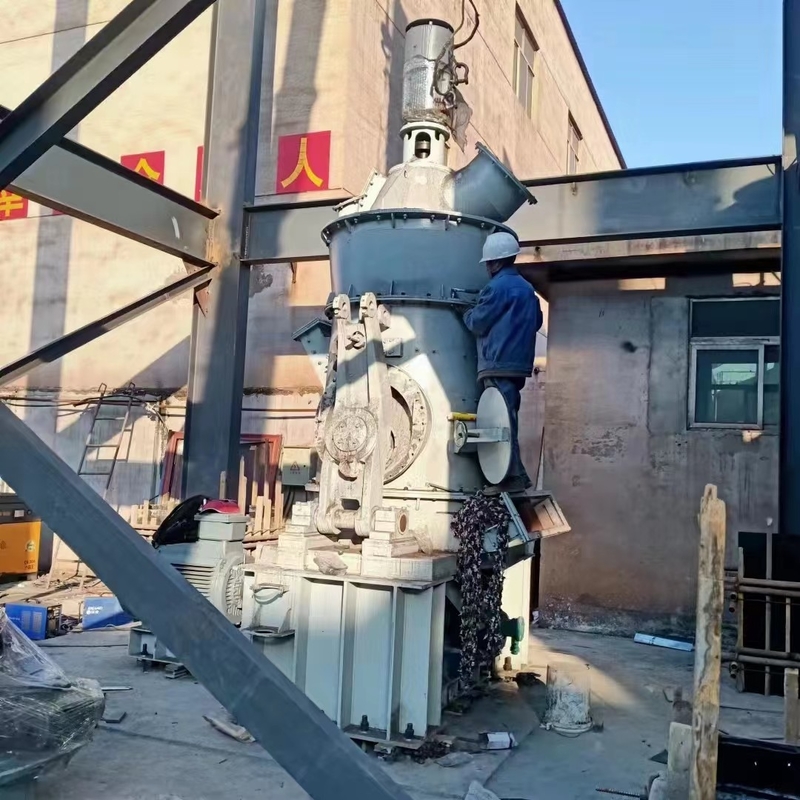

Energy Saving 1250 Mesh Vertical Roller Mill For Limestone, Calcite, Barite, Dolomite And Feldspar
Description
The calcite grinding powder production line is a set of industrial grinding powder production line with reasonable matching, reliable quality and high cost performance. It can effectively provide the overall design and construction plan of the grinding operation, as well as the turnkey project in the field of grinding. The calcite grinding powder production line simultaneously It is also suitable for grinding other ore grinding materials with Mohs hardness not greater than 9.5 and humidity less than 5%, which is non-flammable and explosive.
【Application field】
Calcite powder is used in artificial stone, artificial floor tile, natural rubber, synthetic rubber, paint, plastic, composite new calcium plastic, cable, paper, toothpaste, cosmetics, glass, medicine, paint, ink, cable, electrical insulation, food, textile, It is used as filler in feed, adhesive, sealant, asphalt, building materials, linoleum building supplies, fireproof ceiling and daily chemical products. Calcium carbonate pulverization processing, gypsum powder processing, power plant desulfurization, non-metallic ore pulverizing, pulverized coal preparation, etc.
【Material】
Limestone, calcite, calcium carbonate, dolomite, barite, talc, gypsum, diabase, quartzite, bentonite, etc.
| Specifications | HVM800 | HVM1250 | HVM1300 | HVM1500 | HVM1700 | HVM1750 | HVM1900 | HVM2400 | HVM2400 | HVM2500 |
| Grinding table median diameter | 800 | 1250 | 1300 | 1500 | 1700 | 1750 | 1900 | 2400 | 2400 | 2500 |
| Capacity(t/h) | 1-3 | 2-7 | 3-12 | 4-16 | 6-24 | 7-27 | 7-28 | 9-35 | 10-39 | 11-45 |
| Materials Grain Size(mm) | 0-15 | 0-20 | 0-25 | 0-35 | 0-35 | 0-35 | 0-40 | 0-40 | 0-40 | 0-50 |
| Materials Moisture(%) | ＜5 | |||||||||
| Product Fineness(10-40um) | 97% | |||||||||
| Product Moisture(%) | ≤1 | |||||||||
| Main Motor Power(kw) | 55 | 132 | 180 | 250 | 355 | 400 | 450 | 560 | 630 | 710 |
Re:The data based on Mohs'hardness 3-4 material
The product fineness can reach 10 um(1250 mesh)
【Product Advantages】
1. High efficiency and energy saving: under the condition of the same fineness and motor power, the output is more than double that of jet mill, stirring mill and ball mill.
2. The wearing parts have a long service life: the grinding roller and the grinding ring are forged with special materials, so that the utilization degree is greatly improved.
3. High safety and reliability: because there are no rolling bearings and no screws in the grinding chamber, there is no problem that the bearings and their seals are easily damaged, and there is no problem that the screws are easy to loosen and damage the machine.
4. High product fineness: product fineness can reach 10um (1250 mesh)
5. Environmental protection and cleanliness: The pulse dust collector is used to capture dust, and the muffler is used to reduce noise, which has the characteristics of environmental protection and cleanliness.
