Product Details
Place of Origin: CHINA
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: HVM2500 HVM2800 HVM3400 HVM4200 HVM4500 HVM4800 HVM5100 HVM5600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month
Name: |
Desulfurized Gypsum Vertical Grinding Machinery Equipment |
Type: |
Vertical Roller Mill |
Capacity(t/h): |
240~300 |
Motor Type: |
AC Motor |
Dimension(L*W*H): |
Customized |
Raw Meal Fineness: |
R0.08＜14% |
Factory Visit: |
Welcomed |
Spare Parts Supplying: |
Life Long Provide |
Grinding Table Median Diameter(mm): |
2500,2800,3400,3700,4200,4500,4800,5100,5600 |
Name: |
Desulfurized Gypsum Vertical Grinding Machinery Equipment |
Type: |
Vertical Roller Mill |
Capacity(t/h): |
240~300 |
Motor Type: |
AC Motor |
Dimension(L*W*H): |
Customized |
Raw Meal Fineness: |
R0.08＜14% |
Factory Visit: |
Welcomed |
Spare Parts Supplying: |
Life Long Provide |
Grinding Table Median Diameter(mm): |
2500,2800,3400,3700,4200,4500,4800,5100,5600 |

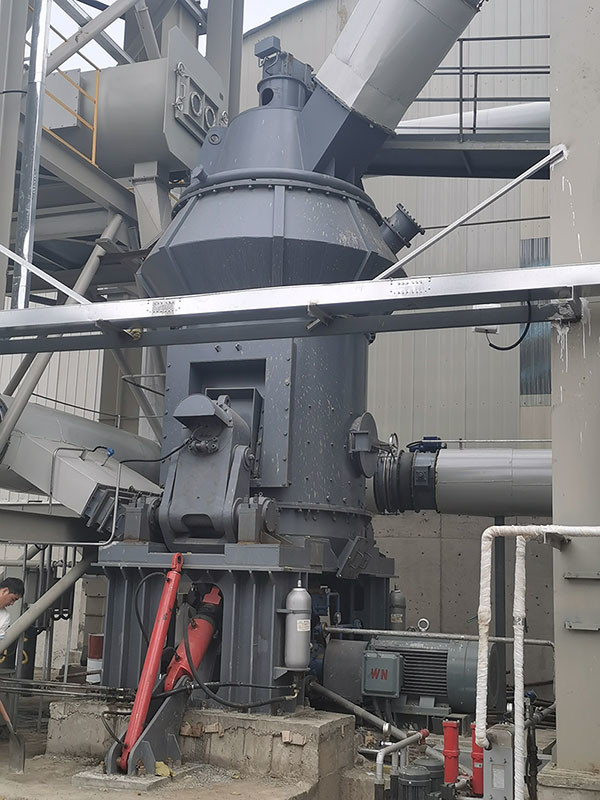

High Efficiency Desulfurized Gypsum Vertical Grinding Machinery Equipment
Description:
HVM series vertical pulverizer is a high-efficiency and energy-saving advanced pulverizing equipment integrating drying, pulverizing, grading and conveying, developed by the company through learning and introducing foreign advanced technology and after more than 20 years of painstaking research and development.
【Application Field】
Grinding and processing of non-flammable and explosive materials with humidity within 6% and Mohs hardness below 7 in the fields of building materials, chemical industry, metallurgy, paint, paper, rubber, medicine, food, etc.
【Applicable Materials】
Kaolin, barite, fluorite, talc, water slag, lime calcium powder, wollastonite, gypsum, limestone, phosphate rock, marble, potassium feldspar, quartz sand, bentonite, manganese ore and other hardness Mohs Materials below grade 7
【Advantages of HVM Vertical Mill】
High grinding efficiency
Low power consumption
Large feed particle size
Product fineness is easy to adjust
Small footprint
Low noise and little dust
Equipment process is simple, easy to use and maintain
Low operating costs and low consumption of wear-resistant materials
Specifications And Technical Parameters Of HVM Gypsum Vertical Mill
| Model | HVM2500 | HVM2800 | HVM3400 | HVM3700 | HVM4200 | HVM4500 | HVM4800 | HVM5100 | HVM5600 |
| Grinding Table Median Diameter(mm) | 2500 | 2800 | 3400 | 3700 | 4200 | 4500 | 4800 | 5100 | 5600 |
| Capacity(t/h) | 85-100 | 130-160 | 190-240 | 240-300 | 320-400 | 400-500 | 440-550 | 550-670 | 600-730 |
| Raw Material Moisture | ＜10% | ||||||||
| Raw Meal Fineness | R0.08＜12% | R0.08＜14% | |||||||
| Raw Meal Moistrue | ≤1% | ||||||||
| Main Motor Power(kW) | 800/900 | 1120/1250 | 1800/2000 | 2500/2800 | 3150/3350 | 3800/4200 | 4200/4500 | 5000/5400 | 5600/6000 |
| Illustrate |
Re:Raw materials bond index≤13kWh/t |
||||||||
The vertical mill integrates drying, grinding, grading and conveying, with high grinding efficiency, low power consumption, large feeding particle size, easy adjustment of product fineness, simple equipment process, small footprint, low noise, It has the characteristics of small dust, easy use and maintenance, low operating cost, and low consumption of wear-resistant materials.
Grindable Material
