Energy Saving Calcite Vertical Mill Machine Calcite Grinding Mill

Energy Saving 1250 Mesh Calcite Powder Grinding Mill Equipment For Mill Plant

Description

Calcite vertical mill is the main production equipment for deep processing in the ore industry. It can meet the growing market demand and grind ores of different fineness. It can be used to manufacture cement, calcium carbide, polishing agent, and sometimes as a co-solvent. Most textiles use calcite powder as a filler; in the field of life, it can be used as a useful medicine and an important element in processing painting chalk.

Calcite, a calcium carbonate mineral, is often transparent and colorless or white. It is widely distributed in nature. After reasonable processing, it is used in many aspects of chemical industry, metallurgy, construction and industry. A very important step in the processing of calcite is grinding, and the output capacity of the calcite pulverizer directly determines the profit that the user can obtain.

【Process Flow Of Calcite Vertical Mill】

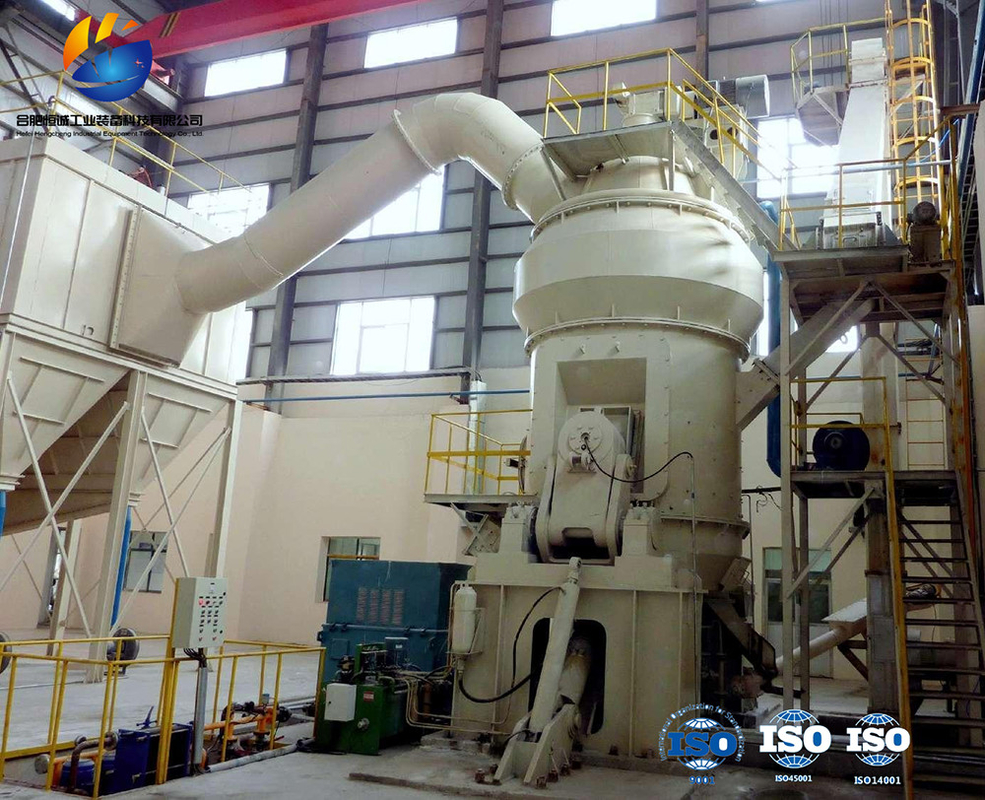

In the calcite vertical mill, the motor drives the reducer to drive the grinding disc to rotate. The material to be ground is fed into the center of the rotating grinding disc by the air lock feeding device. Under the action of centrifugal force, the material moves to the periphery of the grinding disc and enters the grinding roller table. Under the action of the pressure of the grinding roller, the material is crushed by extrusion, grinding and shearing, which is a working principle. The structure of the whole machine integrates crushing, drying, grinding, grading, and conveying. The grinding efficiency is high, and the production capacity per hour can reach 1-45 tons.

Re:The data based on Mohs'hardness 3-4 material
The product fineness can reach 10 um(1250 mesh)

【Product Advantages】

1. High efficiency and energy saving, low energy consumption, compared with the ball mill, the energy consumption is 40%-50% lower, and the low valley electricity can be used;
2. High reliability, using the grinding roller limit device to avoid the violent vibration caused by the material cut off during the working time of the mill
3. The product quality is stable, and it is easy to detect the particle size distribution and composition of the product, and the product quality is stable;
4. Easy maintenance and low operating cost;
5. The system has less equipment, compact structure and small footprint, which reduces the investment cost of the enterprise;
