Product Details
Place of Origin: CHINA
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: HVM2500 HVM2800 HVM3400 HVM4200 HVM4500 HVM4800 HVM5100 HVM5600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month
Features: |
Efficient, Energy-saving, Environmentally Friendly |
Equipment Type: |
Vertical Roller Mill |
Applicable Materials: |
Gypsum (natural Gypsum, Desulfurization Gypsum, Phosphogypsum, Etc.) |
Motor Type: |
AC Motor |
Finished Product Fineness: |
80-325 Mesh (adjustable) |
Output Size: |
150-3000mesh |
Capacity(t/h): |
10-400 Tph |
Spare Parts: |
Supplied |
Dimension(L*W*H): |
Depending On Capacity |
Core Components: |
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
Features: |
Efficient, Energy-saving, Environmentally Friendly |
Equipment Type: |
Vertical Roller Mill |
Applicable Materials: |
Gypsum (natural Gypsum, Desulfurization Gypsum, Phosphogypsum, Etc.) |
Motor Type: |
AC Motor |
Finished Product Fineness: |
80-325 Mesh (adjustable) |
Output Size: |
150-3000mesh |
Capacity(t/h): |
10-400 Tph |
Spare Parts: |
Supplied |
Dimension(L*W*H): |
Depending On Capacity |
Core Components: |
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |

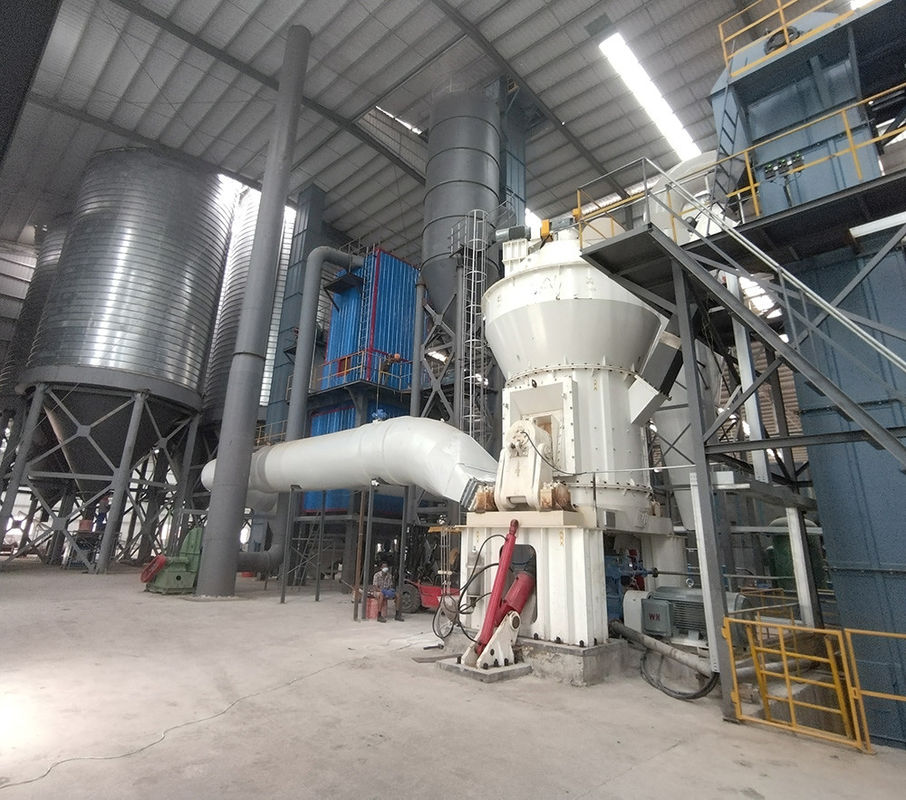

Durable Gypsum Vertical Grinding Mill for Construction & Manufacturing
Gypsum vertical mill is an industrial equipment specifically designed for grinding gypsum, widely used in industries such as construction, cement, and chemical engineering.
1. Product Overview
Gypsum vertical mill is an efficient and energy-saving grinding equipment, mainly used for fine and ultrafine grinding of gypsum. Its vertical structure design makes the equipment occupy a small area, easy to operate, and easy to maintain.
2. Main features
Efficient Grinding: Advanced grinding technology is used to ensure the fineness and uniformity of gypsum powder.
Energy saving and environmental protection: Low energy consumption design reduces energy consumption and meets environmental standards.
Automated control: Equipped with intelligent control systems to achieve automated operations and improve production efficiency.
3.Strong durability: Made of high-quality materials, with good wear resistance and long service life.
Low noise operation: Optimize design, reduce operating noise, and improve working environment.
4. Application Fields
Building materials: used for producing building materials such as gypsum board and gypsum blocks.
Cement industry: As a cement retarder, it regulates the setting time of cement.
Chemical industry: used for producing chemical products such as sulfuric acid and fertilizers.
Agriculture: As a soil amendment, it improves soil structure.
5. Operation and maintenance
Easy to operate: The device is equipped with a detailed operation manual, making it easy to get started.
Easy maintenance: Modular design, easy to disassemble and maintain, reducing downtime.
Regular maintenance: It is recommended to regularly inspect vulnerable parts and replace them in a timely manner to ensure the normal operation of the equipment.
6. Advantage comparison
Compared with traditional ball mills, gypsum vertical grinding tools have higher grinding efficiency, lower energy consumption, and smaller footprint.
Compared with Raymond mill, gypsum vertical mill has more advantages in fineness and yield, and is suitable for large-scale production.
Operational Principle
The electric motor drives the grinding plate to rotate through a reducer, and the material falls into the center of the grinding plate from the feed inlet, while hot air enters the grinding chamber from the air inlet. Under the action of centrifugal force, the material moves towards the edge of the grinding disc and is crushed by the grinding roller when passing through the circular groove on the grinding disc. The crushed material is carried up by the high-speed airflow at the edge of the grinding disc, and large particles directly fall onto the grinding disc for re grinding. When the material in the airflow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls onto the grinding disc for re grinding, and qualified fine powder is discharged with the airflow, Collect in the powder collection device, which is the product. Materials containing moisture are dried during contact with hot gases to achieve the required product moisture.
Specifications And Technical Parameters Of HVM Gypsum Vertical Mill
| Model | HVM2500 | HVM2800 | HVM3400 | HVM3700 | HVM4200 | HVM4500 | HVM4800 | HVM5100 | HVM5600 |
| Grinding Table Median Diameter(mm) | 2500 | 2800 | 3400 | 3700 | 4200 | 4500 | 4800 | 5100 | 5600 |
| Capacity(t/h) | 85-100 | 130-160 | 190-240 | 240-300 | 320-400 | 400-500 | 440-550 | 550-670 | 600-730 |
| Raw Material Moisture | ＜10% | ||||||||
| Raw Meal Fineness | R0.08＜12% | R0.08＜14% | |||||||
| Raw Meal Moistrue | ≤1% | ||||||||
| Main Motor Power(kW) | 800/900 | 1120/1250 | 1800/2000 | 2500/2800 | 3150/3350 | 3800/4200 | 4200/4500 | 5000/5400 | 5600/6000 |
| Illustrate |
Re:Raw materials bond index≤13kWh/t |
||||||||
7. Customer Cases
Case 1: After adopting gypsum vertical grinding, a certain building materials company increased production efficiency by 30% and reduced energy consumption by 20%.
Case 2: A cement plant uses a gypsum vertical mill as a retarder production equipment, resulting in a significant improvement in product quality.
