Product Details
Place of Origin: CHINA
Brand Name: Hengcheng
Certification: ISO Patent Certificate High-Tech Product Certificate
Model Number: HVM2500 HVM2800 HVM3400 HVM4200 HVM4500 HVM4800 HVM5100 HVM5600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets/month
Features: |
Efficient, Energy-saving, Environmentally Friendly |
Equipment Type: |
Vertical Mill |
Applicable Materials: |
Gypsum (natural Gypsum, Desulfurization Gypsum, Phosphogypsum, Etc.) |
Feed Particle Size: |
≤ 50 Mm |
Finished Product Fineness: |
80-325 Mesh (adjustable) |
Output Size: |
150-3000mesh |
Power: |
18.5-45KW |
Product Name: |
Gypsum Grinding Mill |
Dimension(L*W*H): |
Depending On Capacity |
Core Components: |
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
Features: |
Efficient, Energy-saving, Environmentally Friendly |
Equipment Type: |
Vertical Mill |
Applicable Materials: |
Gypsum (natural Gypsum, Desulfurization Gypsum, Phosphogypsum, Etc.) |
Feed Particle Size: |
≤ 50 Mm |
Finished Product Fineness: |
80-325 Mesh (adjustable) |
Output Size: |
150-3000mesh |
Power: |
18.5-45KW |
Product Name: |
Gypsum Grinding Mill |
Dimension(L*W*H): |
Depending On Capacity |
Core Components: |
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |

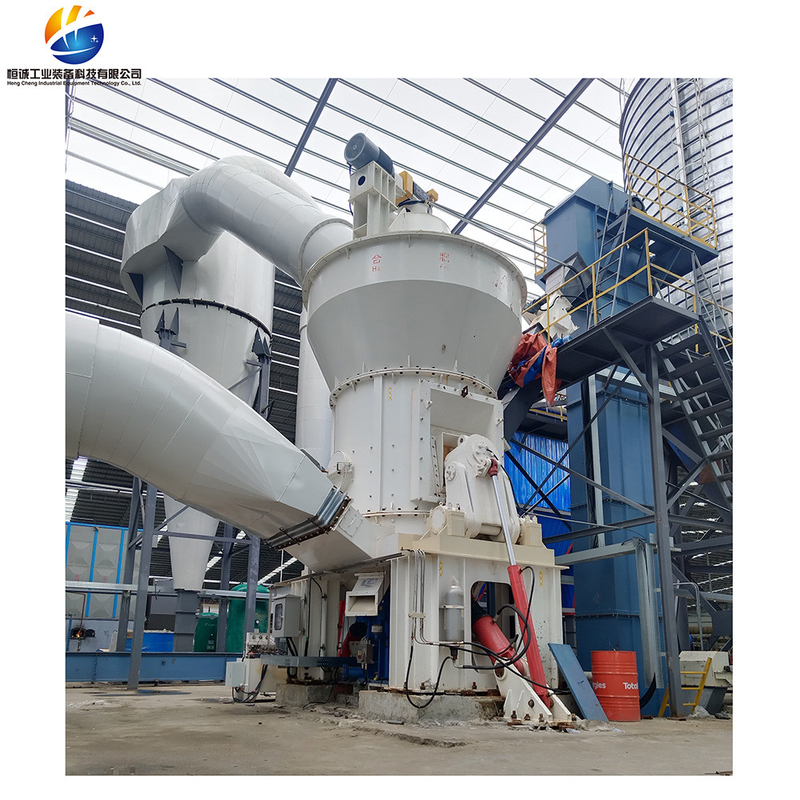

Vertical Mill for Gypsum - High Efficiency Grinding for Construction Materials
Operational Principle
The electric motor drives the grinding plate to rotate through a reducer, and the material falls into the center of the grinding plate from the feed inlet, while hot air enters the grinding chamber from the air inlet. Under the action of centrifugal force, the material moves towards the edge of the grinding disc and is crushed by the grinding roller when passing through the circular groove on the grinding disc. The crushed material is carried up by the high-speed airflow at the edge of the grinding disc, and large particles directly fall onto the grinding disc for re grinding. When the material in the airflow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls onto the grinding disc for re grinding, and qualified fine powder is discharged with the airflow, Collect in the powder collection device, which is the product. Materials containing moisture are dried during contact with hot gases to achieve the required product moisture.
Specifications And Technical Parameters Of HVM Gypsum Vertical Mill
| Model | HVM2500 | HVM2800 | HVM3400 | HVM3700 | HVM4200 | HVM4500 | HVM4800 | HVM5100 | HVM5600 |
| Grinding Table Median Diameter(mm) | 2500 | 2800 | 3400 | 3700 | 4200 | 4500 | 4800 | 5100 | 5600 |
| Capacity(t/h) | 85-100 | 130-160 | 190-240 | 240-300 | 320-400 | 400-500 | 440-550 | 550-670 | 600-730 |
| Raw Material Moisture | ＜10% | ||||||||
| Raw Meal Fineness | R0.08＜12% | R0.08＜14% | |||||||
| Raw Meal Moistrue | ≤1% | ||||||||
| Main Motor Power(kW) | 800/900 | 1120/1250 | 1800/2000 | 2500/2800 | 3150/3350 | 3800/4200 | 4200/4500 | 5000/5400 | 5600/6000 |
| Illustrate |
Re:Raw materials bond index≤13kWh/t |
||||||||
